Power Steering Pump Return Port Relocation Kit -10AN

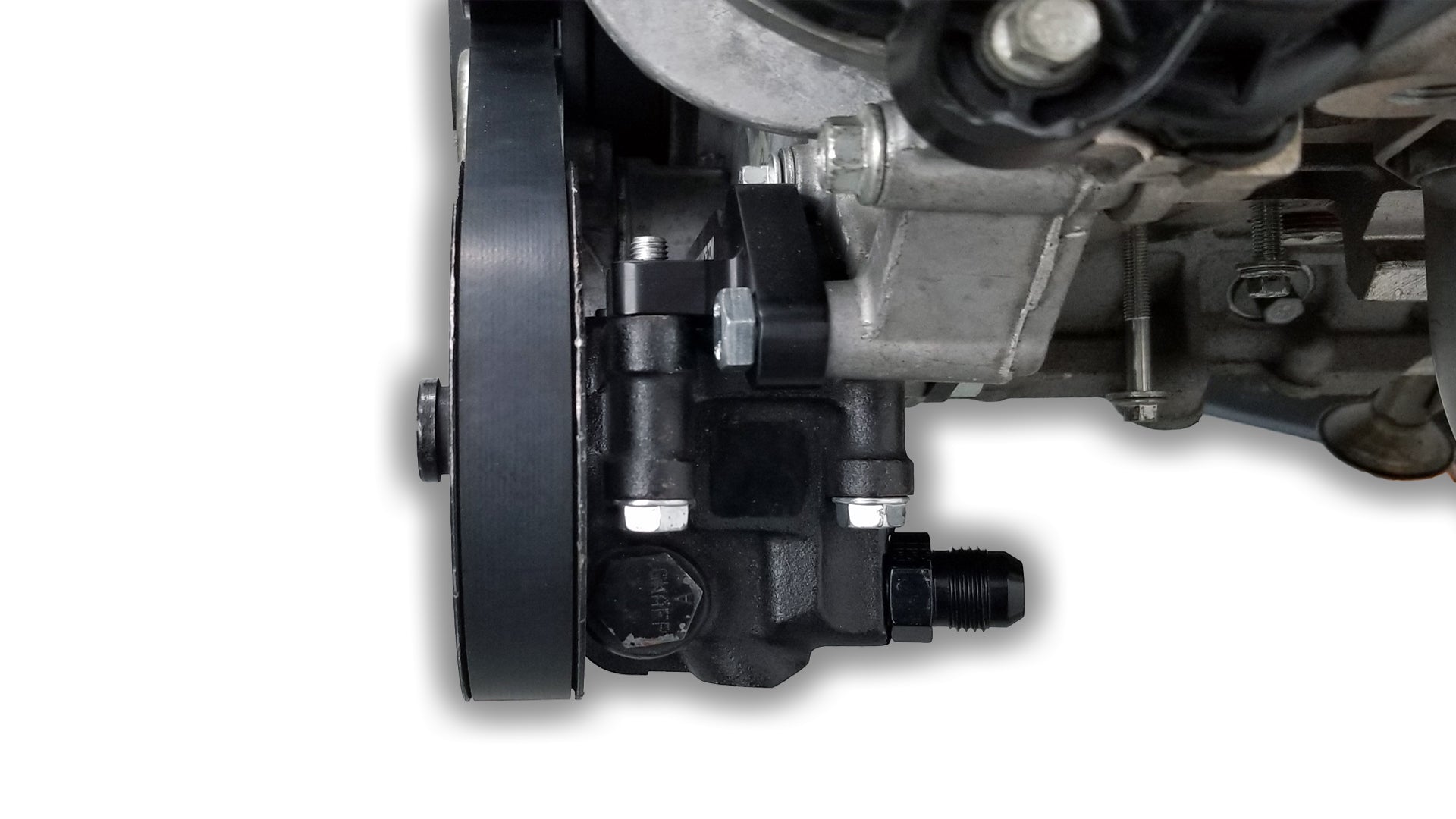

To add an up to 3/4″ of clearance from the power steering pump in our Speed Drive system’s for 5.0L Coyote engines add this AN return port kit. What we do in this kit is remove the OEM feed fitting from the side of the 4.6L modular Ford power steering pump and relocate it to the rear of the pump.

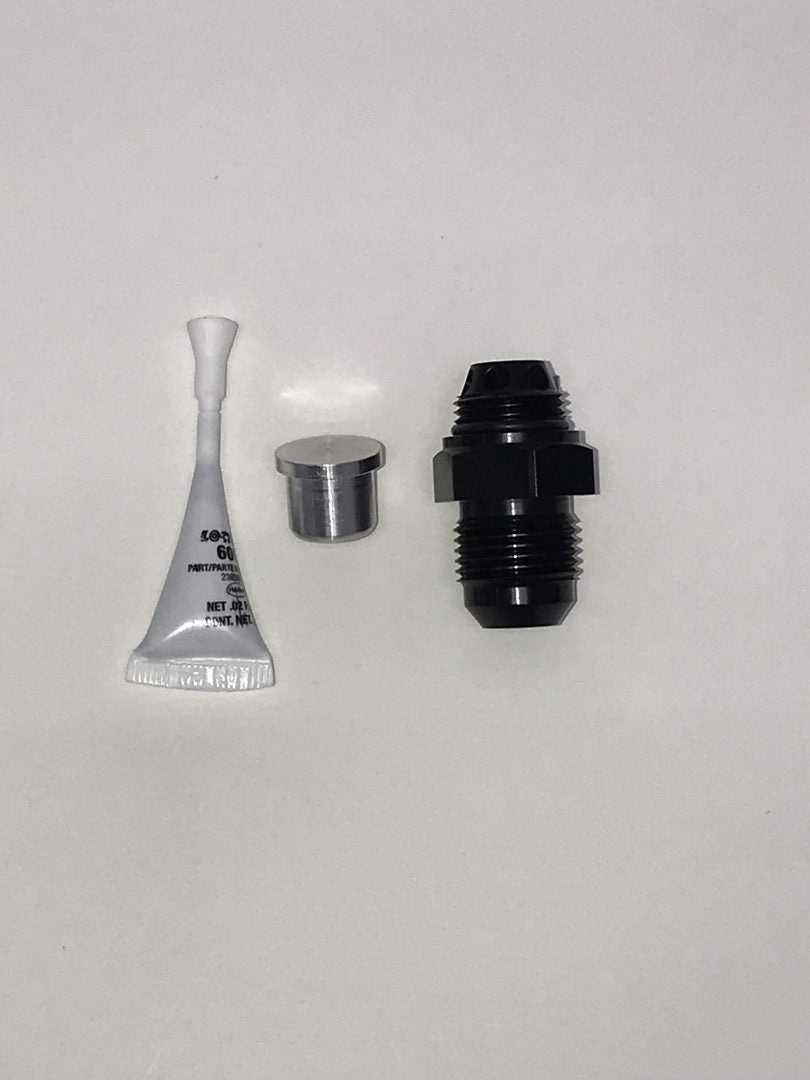

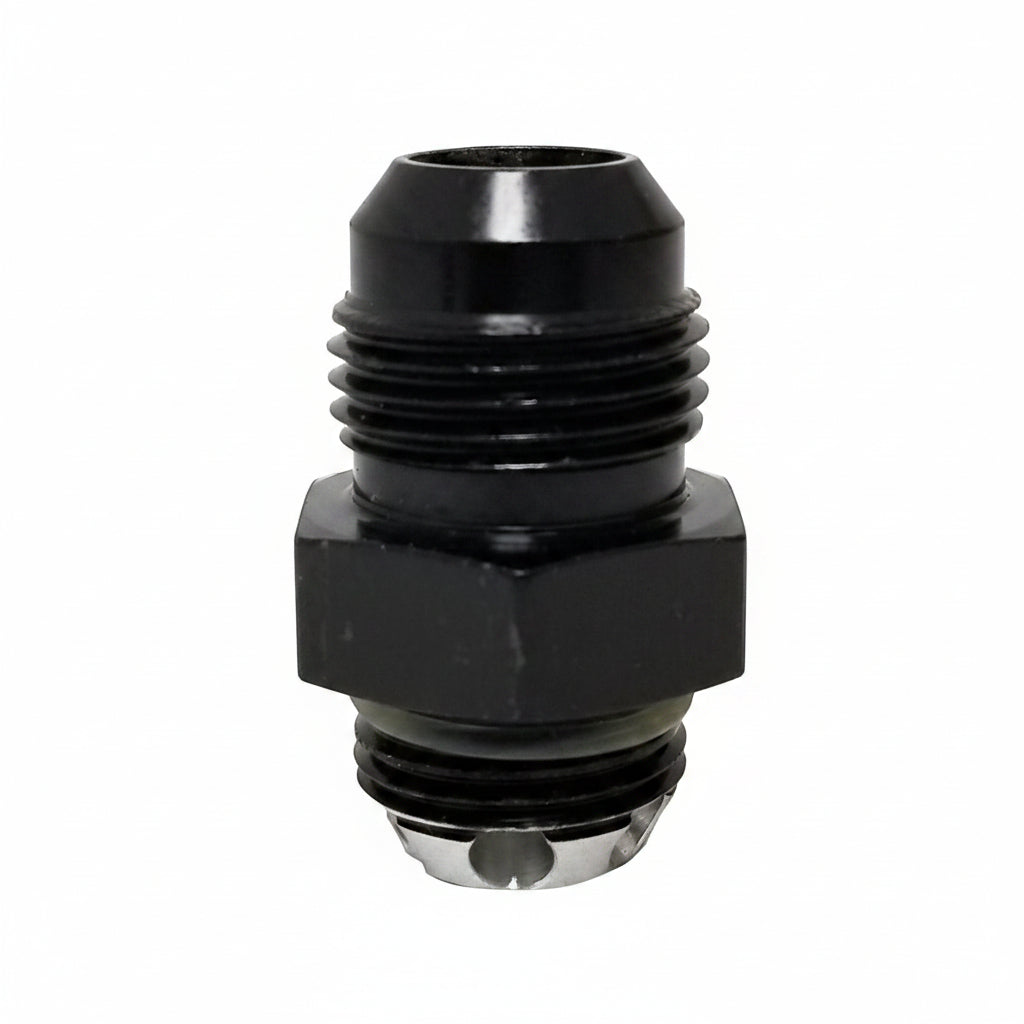

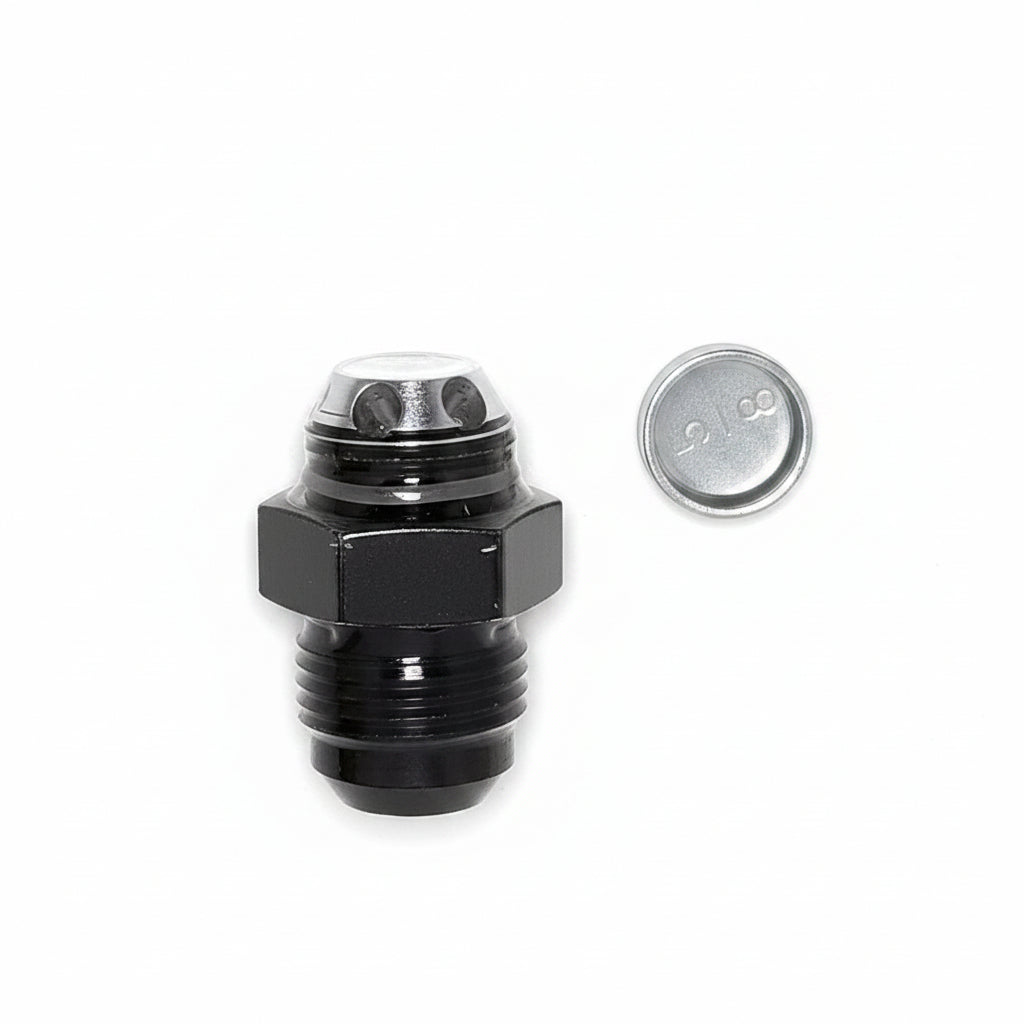

There is a service port found in the back that is removed and this fitting replaces it allowing the end user to cap off the side port making the pump setup that much smaller. We used a -10an fitting to ensure that the same amount of flow is going back into the pump to feed it from your reservoir. The pump side of the fitting has a unique dish in it to mimic the OEM service port fitting. We drilled a series of holes to ensure there is zero restriction on the return line. This return port kit from PBH comes with the AN fitting, O-ring seal, retaining compound and plug for the OEM port.
