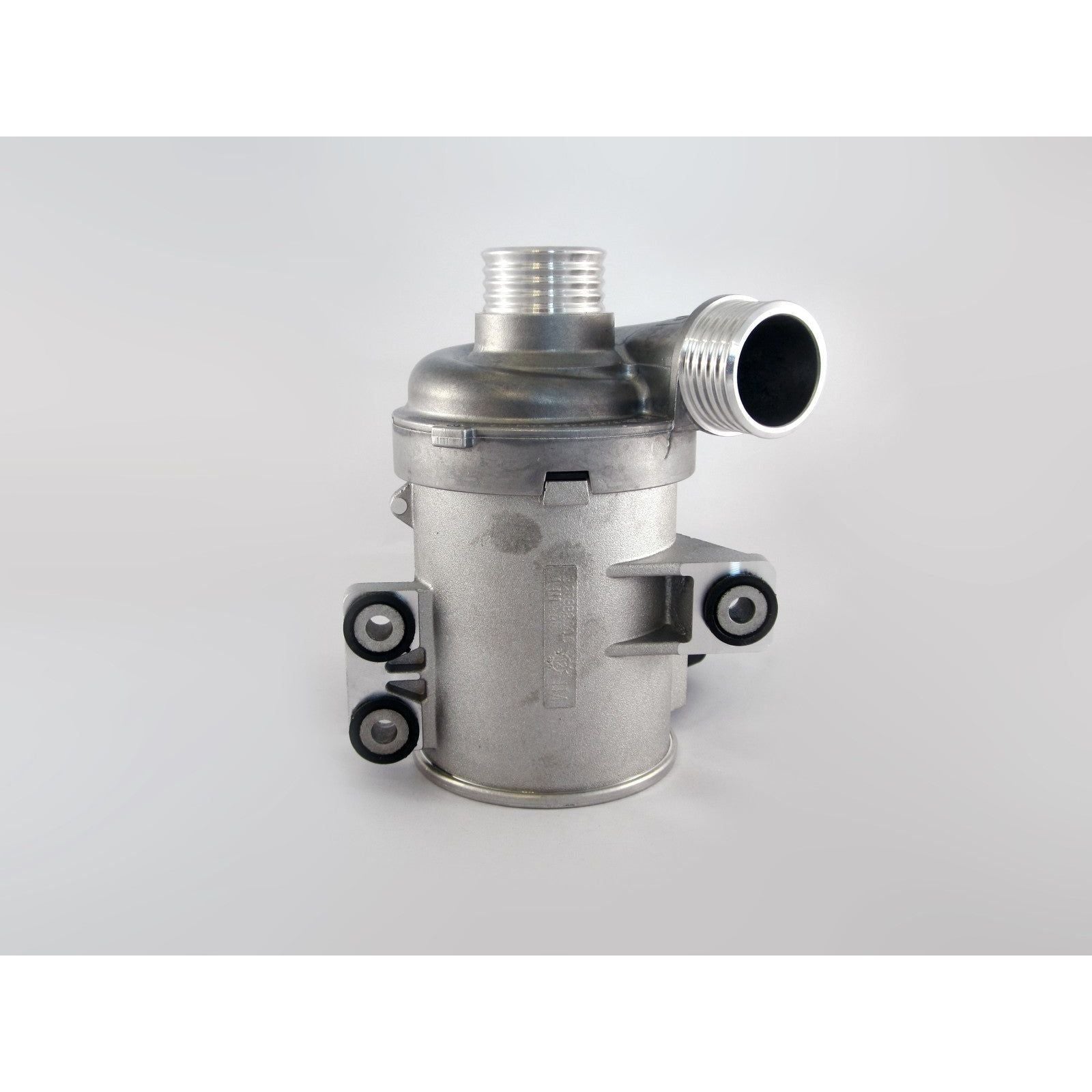

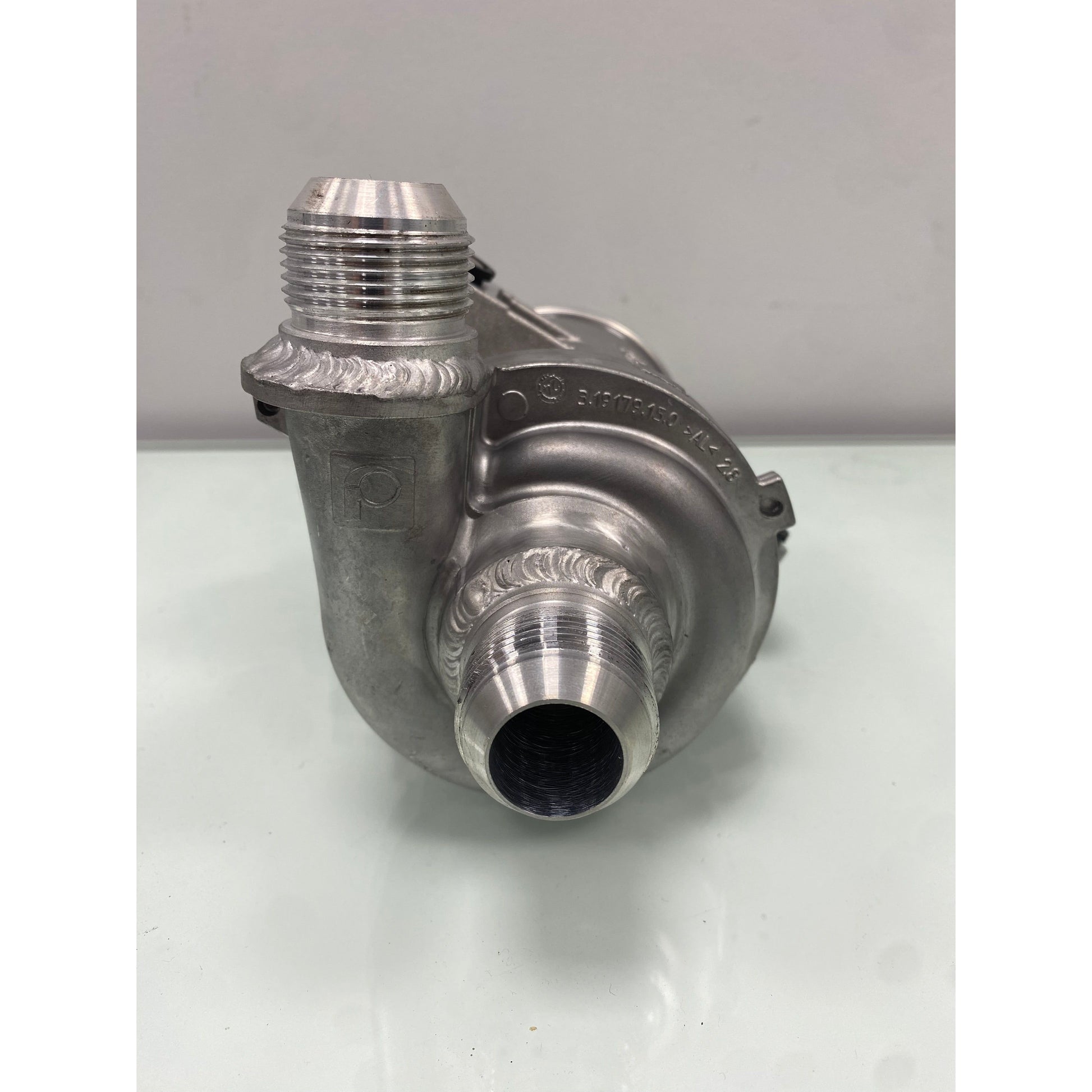

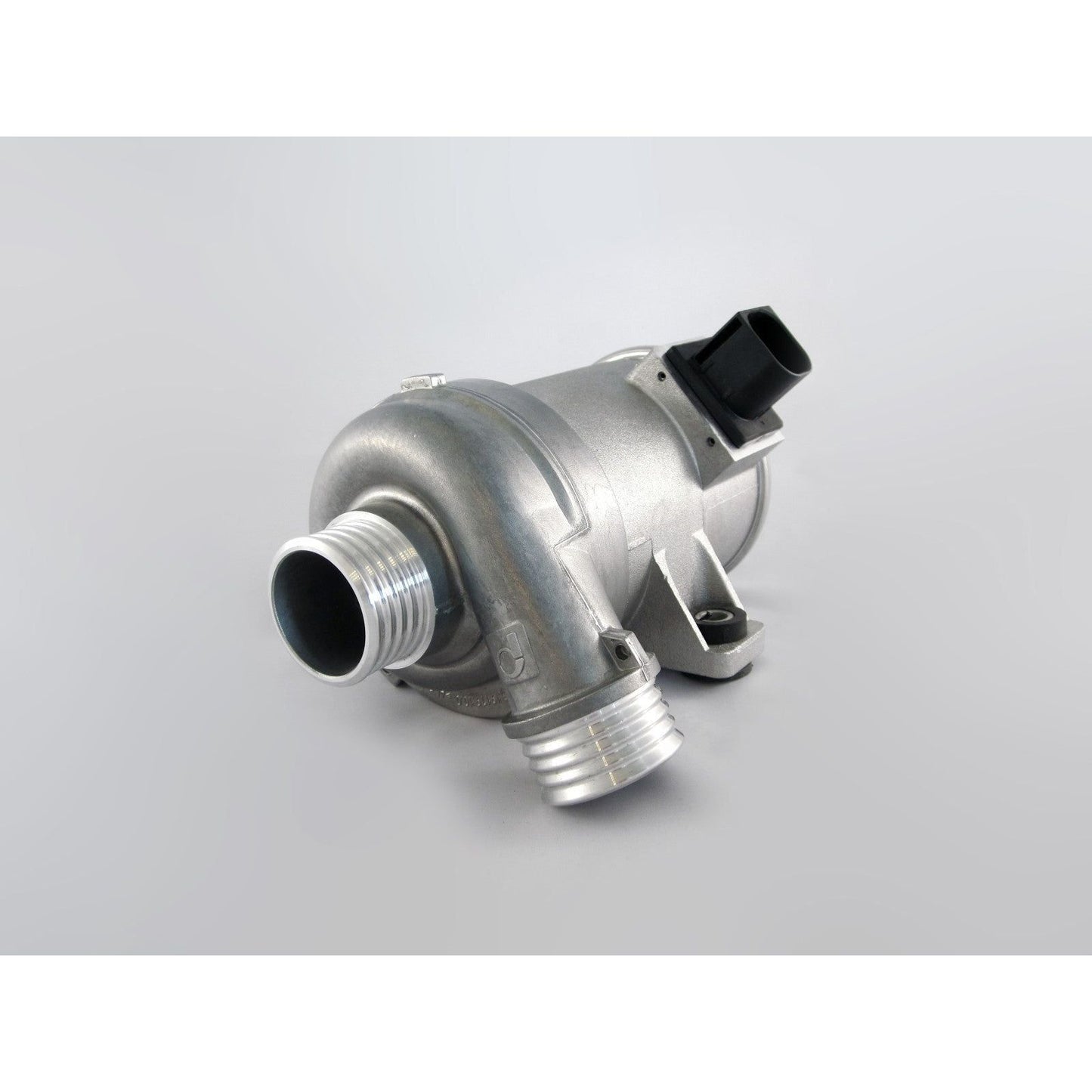

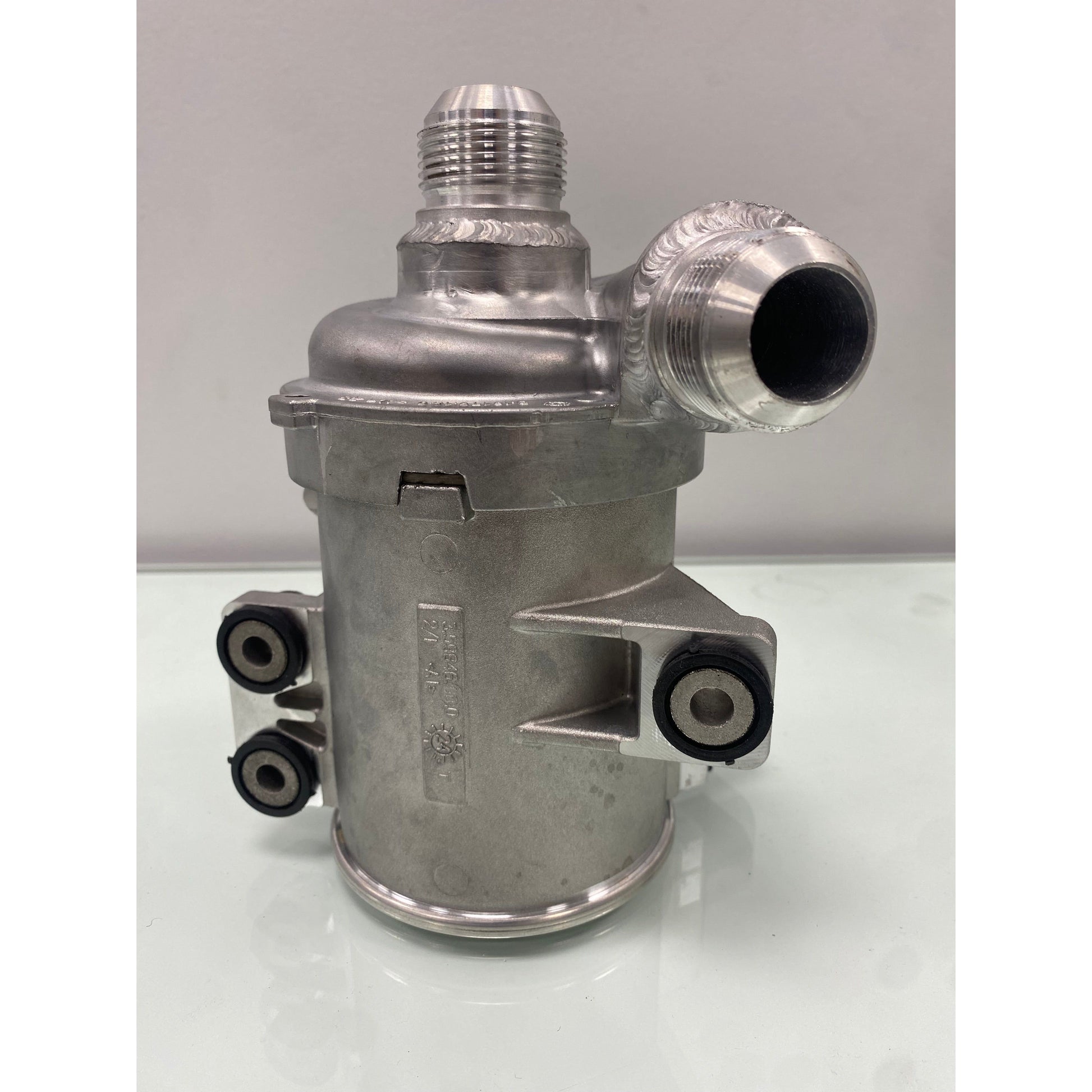

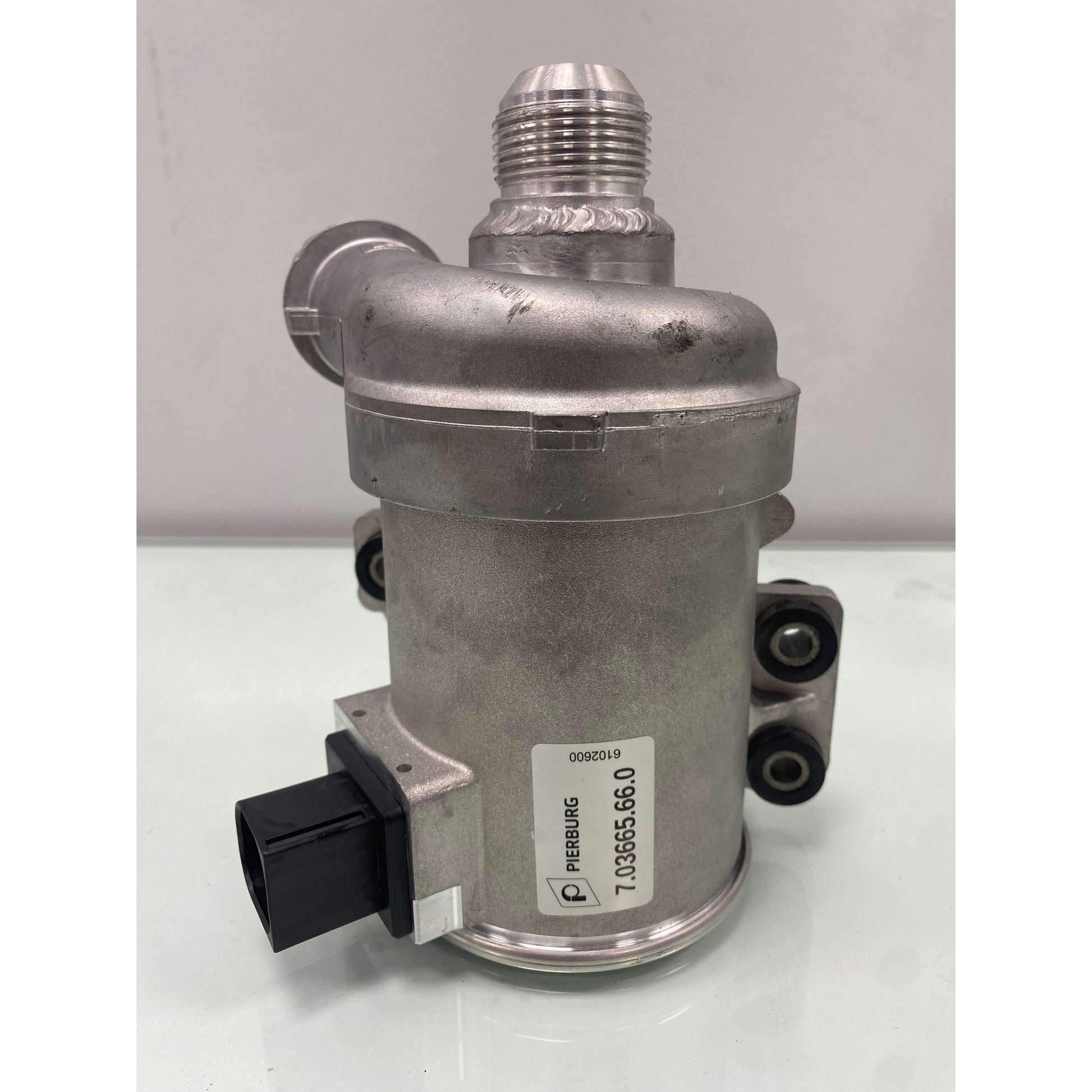

The Pierburg CWA400 pump operates at 8-16 volts and has a weight of 2.15 kg. In standby mode, it consumes just 0.2mA. With a nominal differential pressure of 0.85 bar, it boasts a flow rate of 150l/min at 0.85bar and 220l/min at 0.55bar, and a speed of 5900 rpm. It has a temperature range of -40°C – 128°C for water and -40°C – 140°C for ambient temperatures, and is protected with IP67. Part numbers include 7.03665.66.0 from Pierburg and 11517604027, 11518625097, and 11518635089 from BMW.
Specifications:
Operation voltage: 8-16 volts
Weight: approx. 2.15 kg
Current consumption: 35.5A (36.3A max.)/ (approx. 0.2mA in standby mode)
