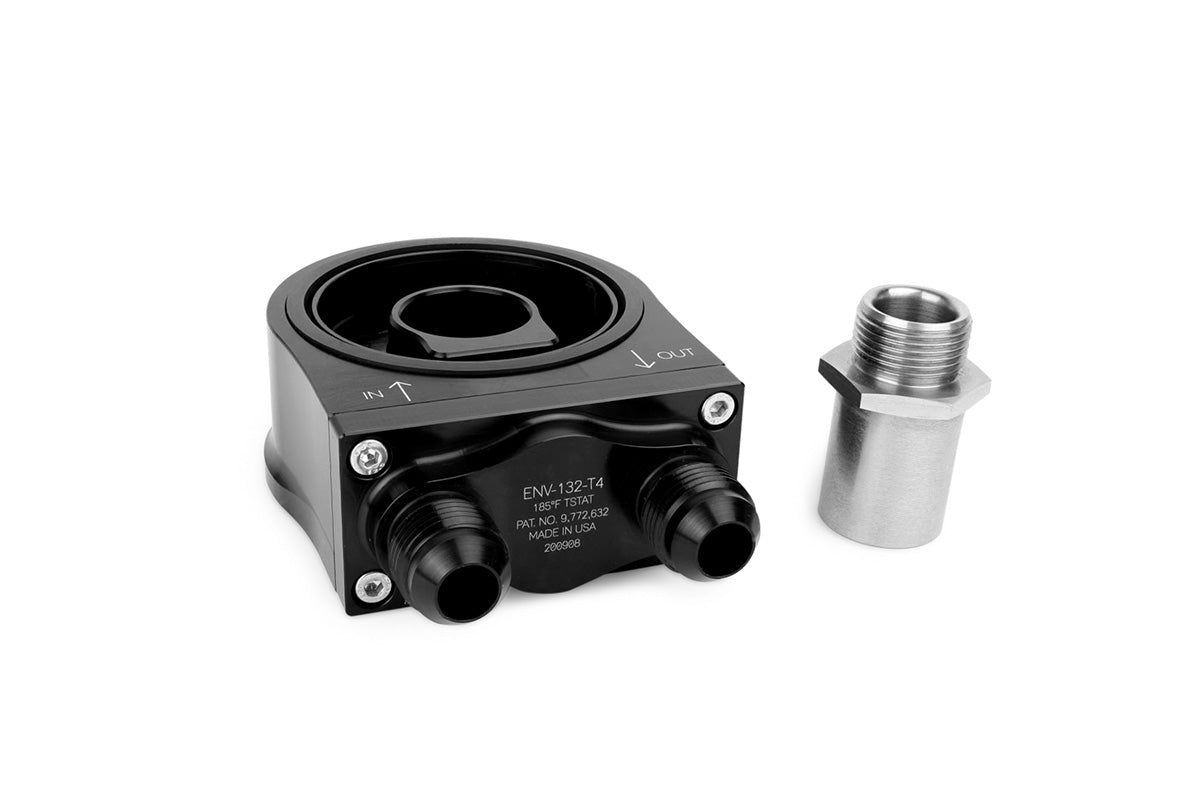

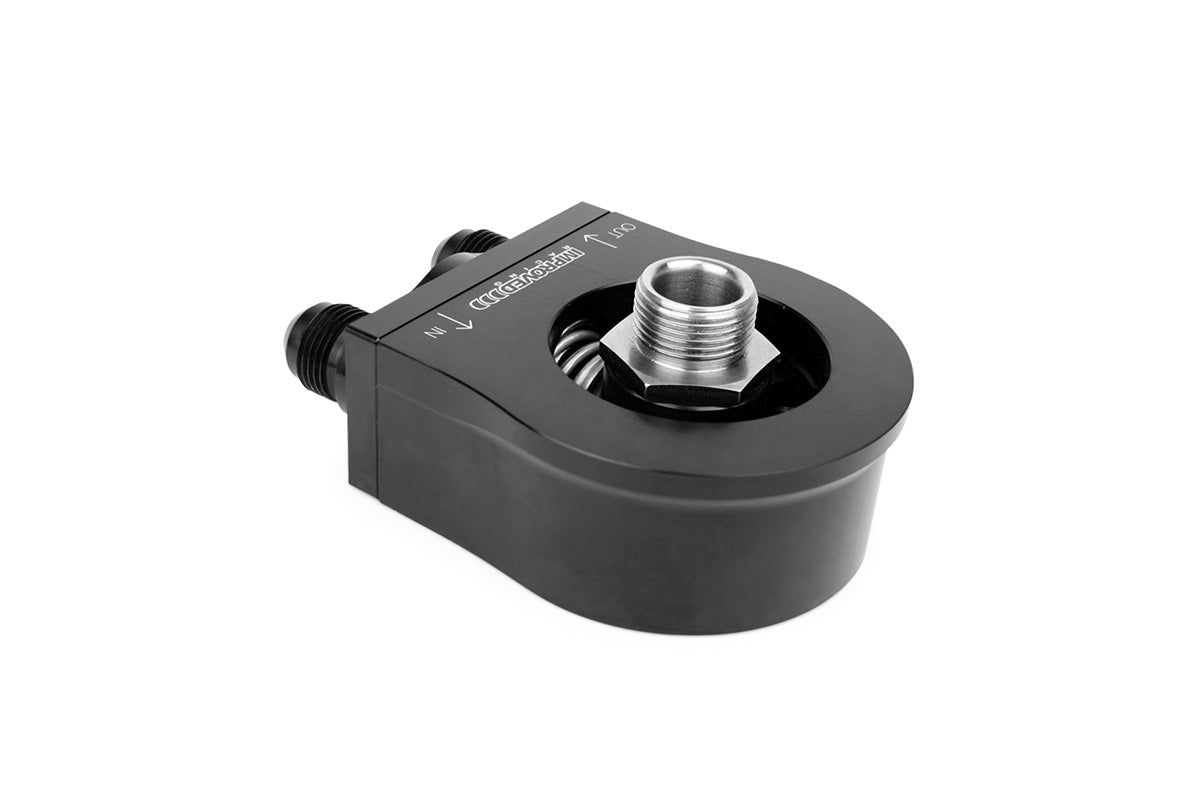

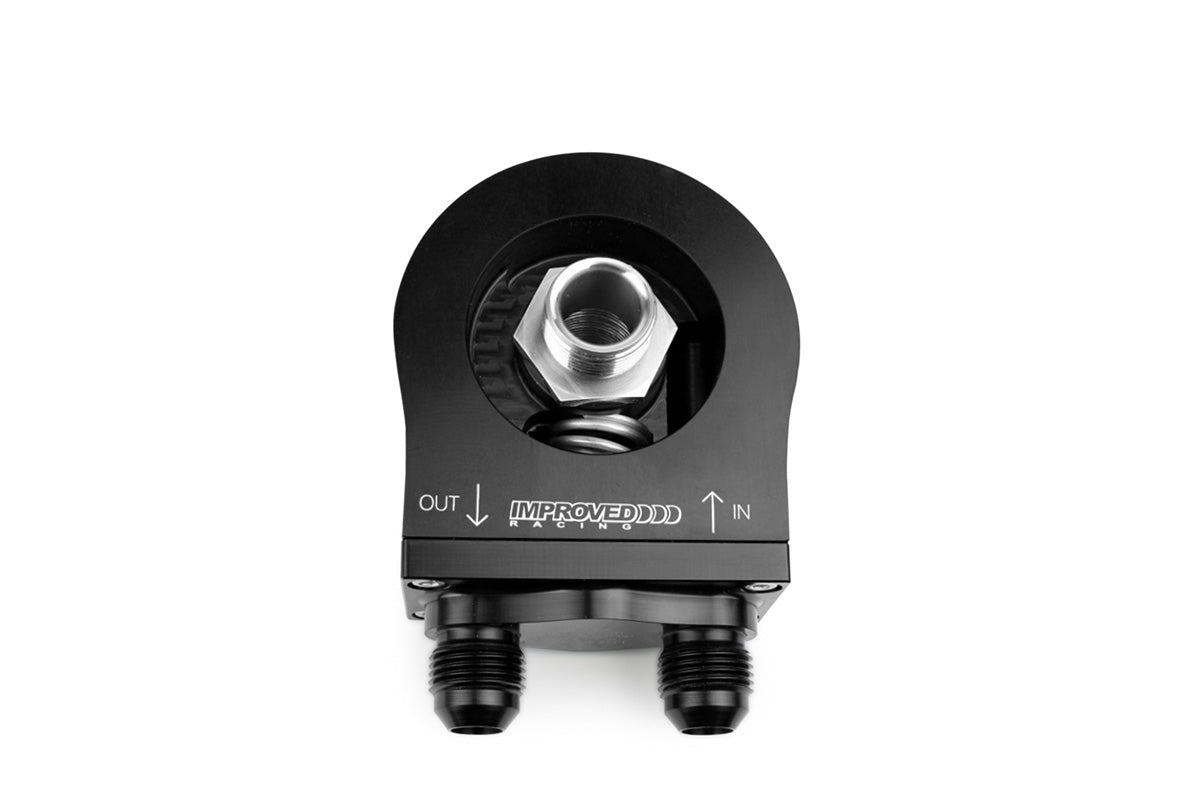

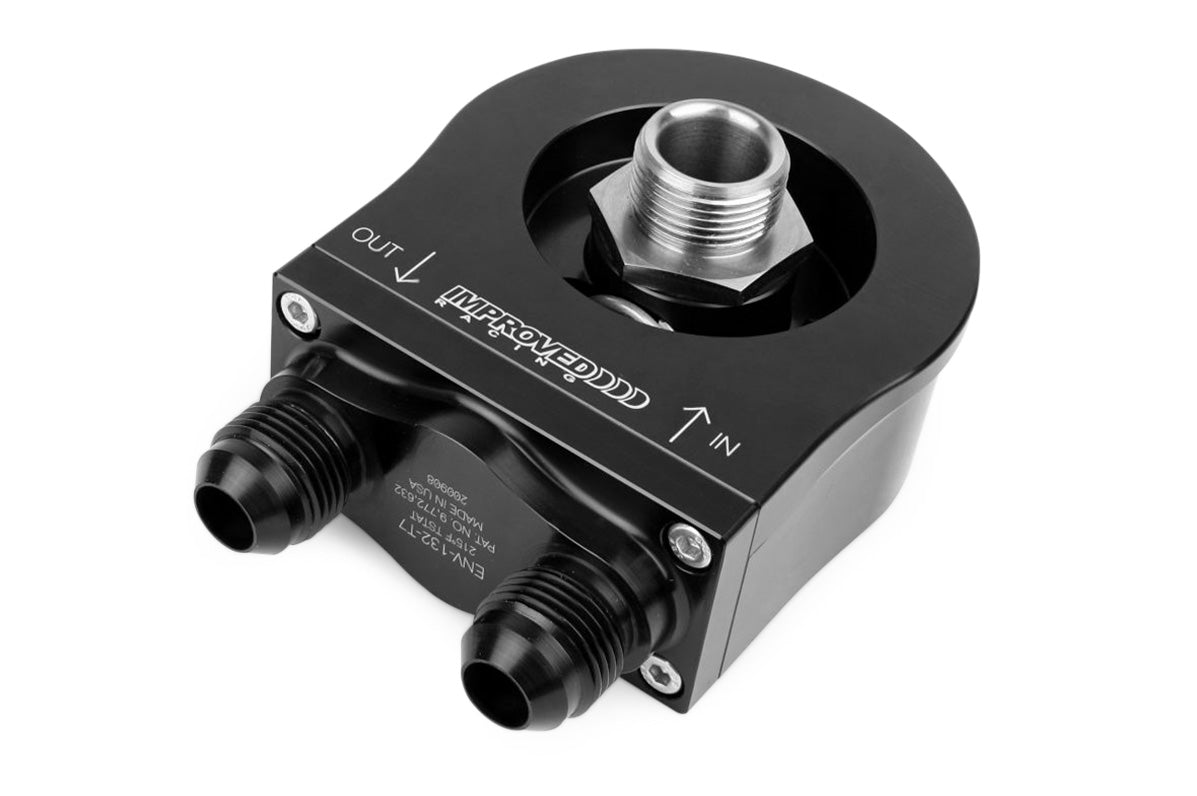

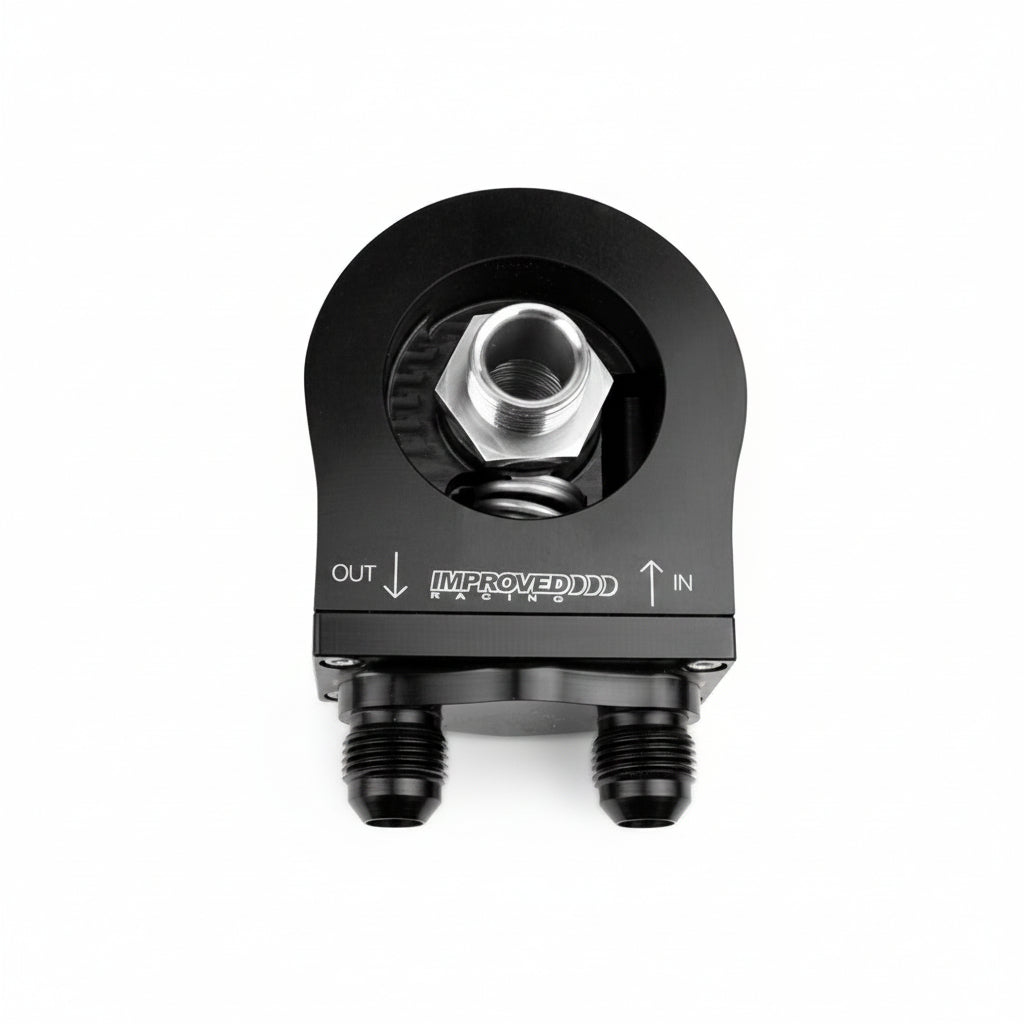

Oil Filter Sandwich Plate for Oil Cooler (With Thermostat)

Improved Racing's anodized billet aluminum sandwich plate is available in all popular oil filter thread sizes for easily plumbing an oil cooler to your engine. This updated version features our patented high-flow valve design (U.S. Patent Number 9,772,632) and more compact dimensions for better fitment in a larger number of applications.

A built-in thermostat bypasses the oil cooler until the oil has reached its minimum operating temperature. The thermostat valve is available in 180°F, 200°F and 212°F temperatures. This allows for quicker warm up times and prevents the oil cooler from over-cooling the engine during street driving.

Features and Benefits

• Allows for quicker warm up and prevents engine oil from being over-cooled.
• Allows a small percentage of fluid to continually circulate through the cooler to eliminate air pockets and prevent cold fluid trapped in the cooler from shocking the system.
• Rebuildable thermostat.
• -8AN OR -10an Male flare ports.
• Filter bung M22x1.50.
• Filter bung is machined from hardened 410 stainless steel for excellent durability.
• 6061-T6 billet aluminum construction with black MIL-A-8625 Type II anodized finish.
• Made in USA.
• Lifetime Warranty.

Includes

• 1x Oil filter sandwich plate with integrated thermostat.
• 1x 410 stainless steel filter thread bung.
• 1x Viton square-cut O-ring.

Dimensions
