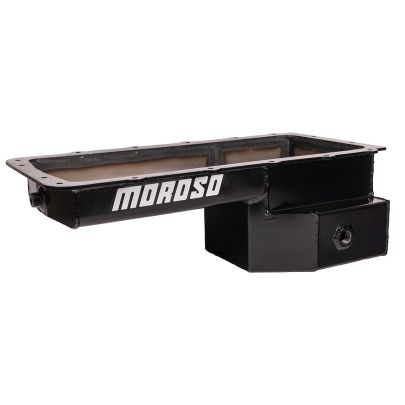

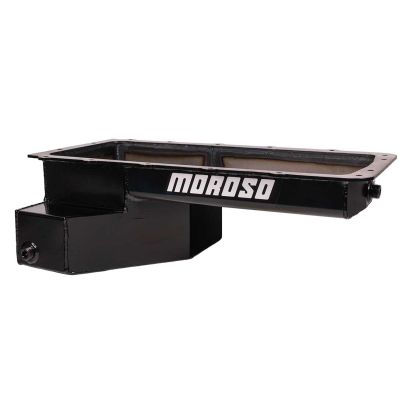

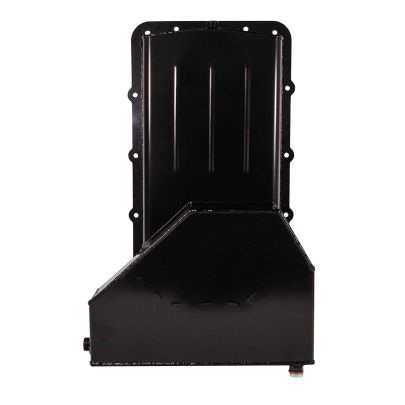

Moroso Oil Pans are a perfect fit for your Ford 97-03/4 F-150 and 98-02 Expedition Coyote swap. Works with OEM style motor mounts or performance style polyurethane bushing motor mounts that we offer.
Model # 20575

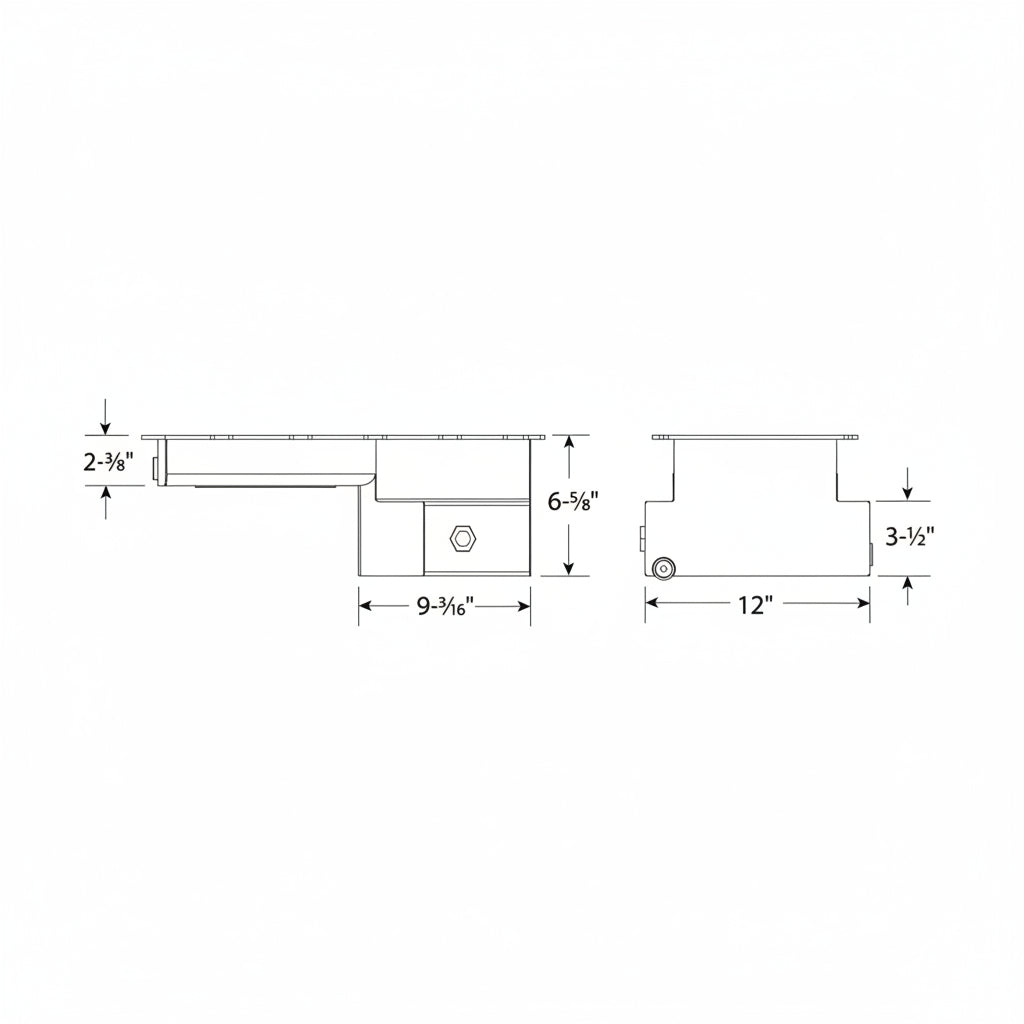

Steel, Wet Sump, 7.5 quart capacity, 6-5/8" Deep
Engine Application: Ford 5.0 Modular "Coyote" Engines
Fits: Mustang '11-Up & other Ford Rear Sump conversions with Ford "Coyote" or "Voodoo" Engines, (Check Dimensions)
Available in either fully fabricated steel with black powder coat finish by Moroso Powder Coating or fully fabricated aluminum

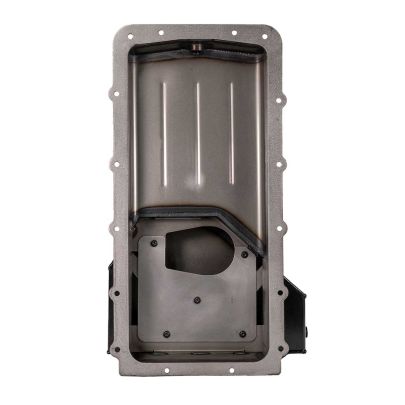

Features trap door and removable anti-slosh baffle for improved oil control
Designed to be used factory dipstick
1/2" N.P.T. fitting for supercharger/turbo drain back, and 1/2" N.P.T. fitting for oil temperature sender
20 mm fitting for factory oil level sender*
Gen 1 & 2 Coyote use factory oil pickup, Gen 3 Coyote/Voodoo use Moroso No. 24578 pickup, Gen 4 use Moroso No. 24581
*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.
