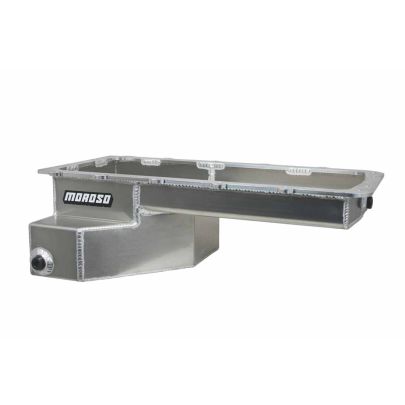

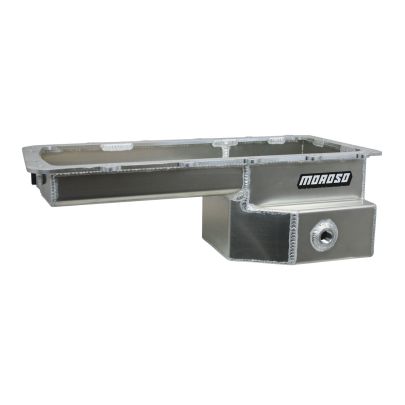

Moroso Oil Pans are a perfect fit for your Ford 97-03/4 F-150 and 98-02 Expedition Coyote swap. Works with OEM style motor mounts or performance style polyurethane bushing motor mounts that we offer.
Model # 20576

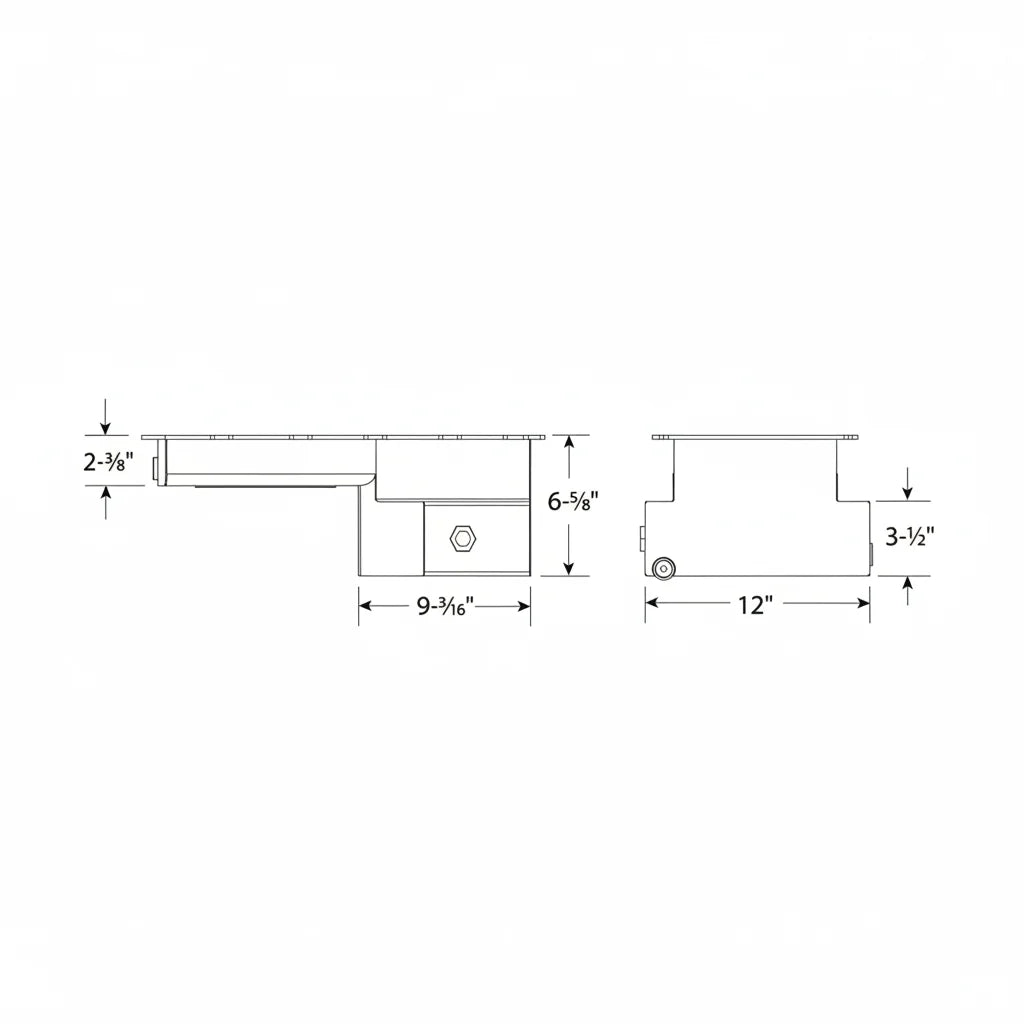

Aluminum, Wet Sump, 9 quart capacity, 6-5/8" Deep
Engine Application: Ford 5.0 Modular "Coyote" Engines
Available in either fully fabricated steel with black powder coat finish or fully fabricated aluminum

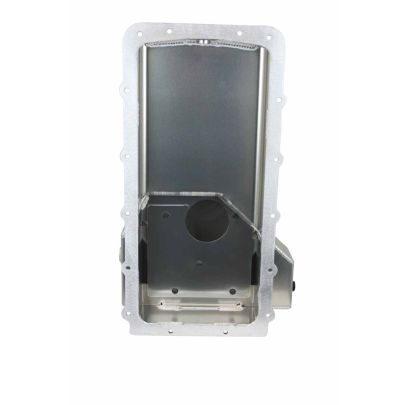

Features trap door and removable anti-slosh baffle for improved oil control
Designed to be used factory dipstick
1/2" N.P.T. fitting for supercharger/turbo drain back, and 1/2" N.P.T. fitting for oil temperature sender
20 mm fitting for factory oil level sender*
Gen 1 & 2 Coyote use factory oil pickup, Gen 3 Coyote/Voodoo use Moroso No. 24578 pickup, Gen 4 use Moroso No. 24581
*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.
