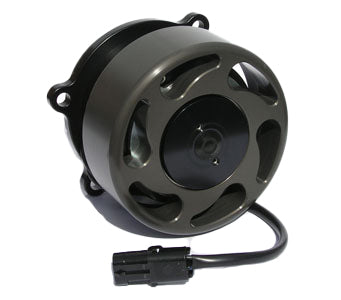

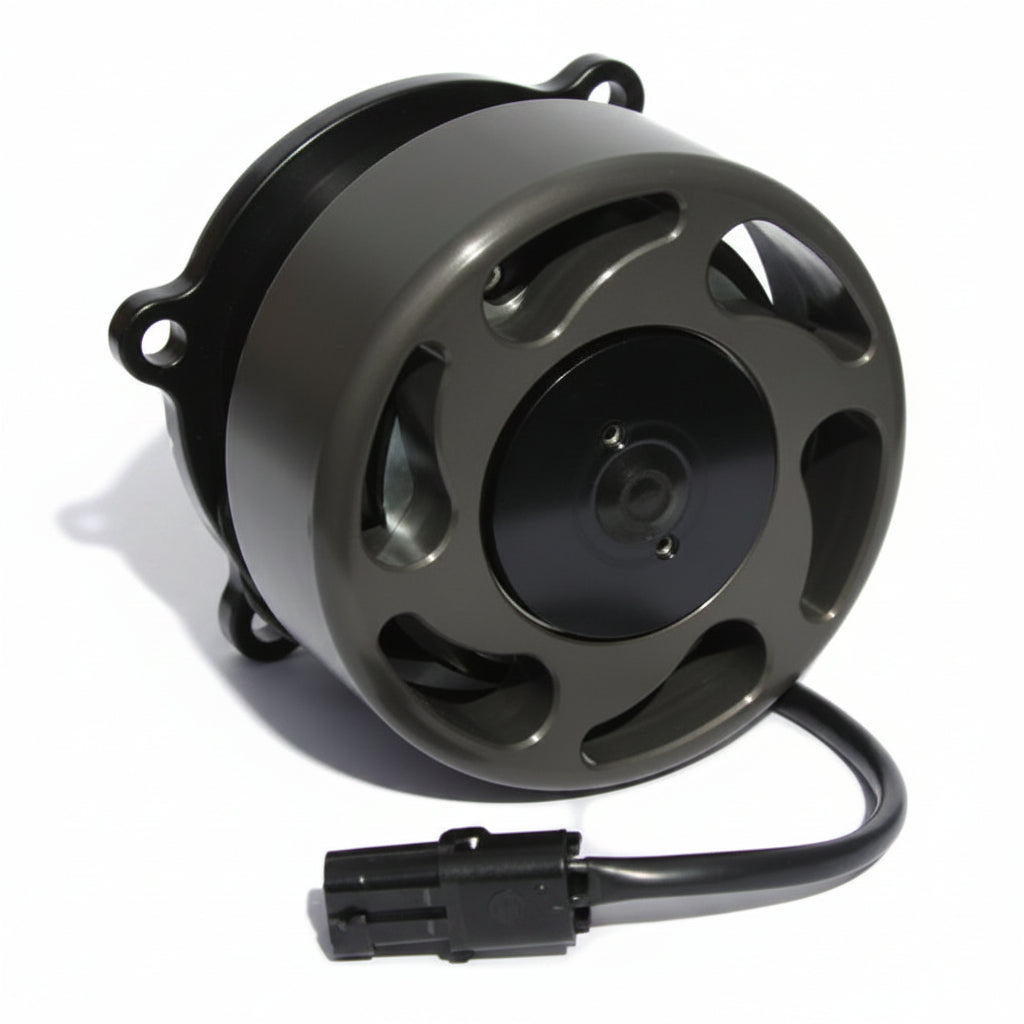

Meziere Modular Electric Water Pumps

Description & Application

• Fits Ford Modular engine
• Idler design allows you to maintain your factory belt-driven accessories.
• Suitable for street or drag strip use – 3000+ hour life expectancy
• Show quality finish
• Provides 55 gallons per minute free flow rating
• Light weight. Complete Modular unit weighs only 6.9 pounds!
• Stainless steel large diameter main shaft with high performance ceramic seal

Note: This pump will not fit the 2003-2004 Cobra engine.
Note: Modular pumps do not fit Supercharged GT500 Mustangs.

Technical Specifications

• Finishing The System: This pump utilizes factory hardware and is supplied with an o-ring seal. No additional items should be necessary.
• Amperage draw: Under normal use the pump will draw 11-12 amps.
• Pulley diameter is 5.1"
• Overall Height Dimension: The standard pump is 3.75" long from the mounting surface to the tip of the pump.
• Pump Weight: This application weighs 6.9 lbs.
• 16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.
