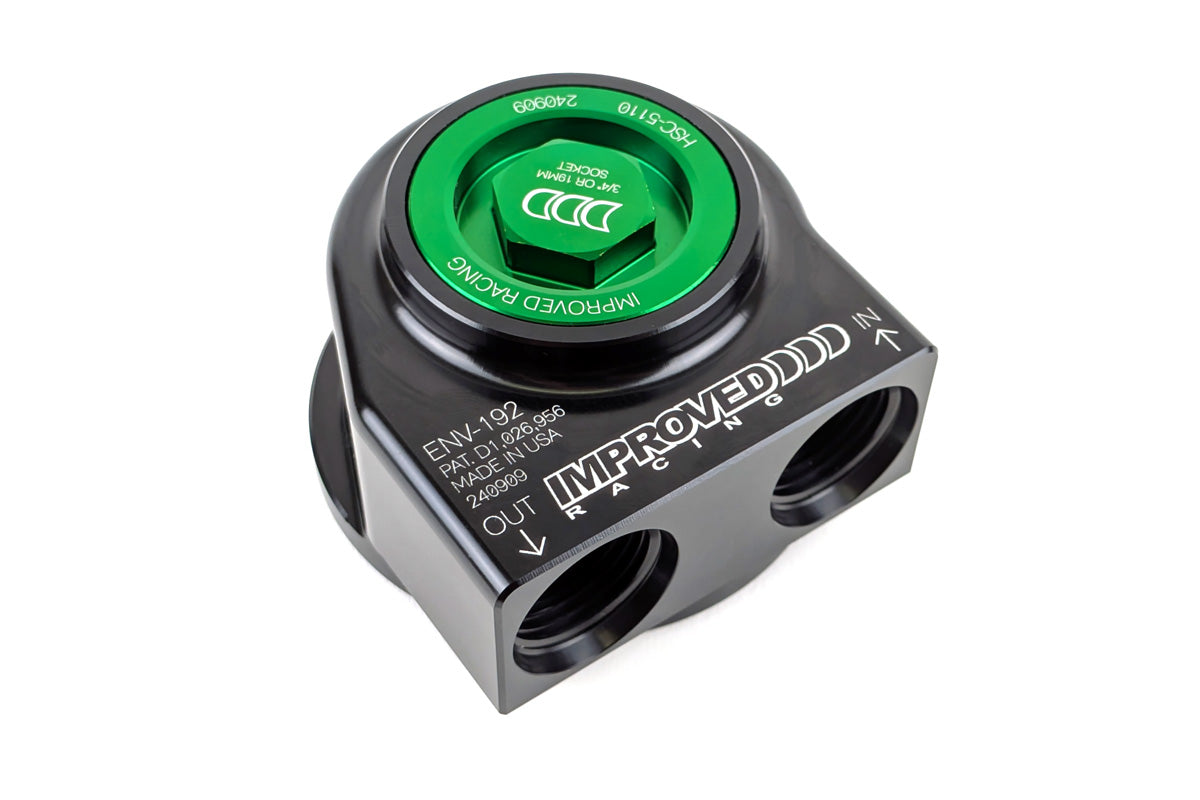

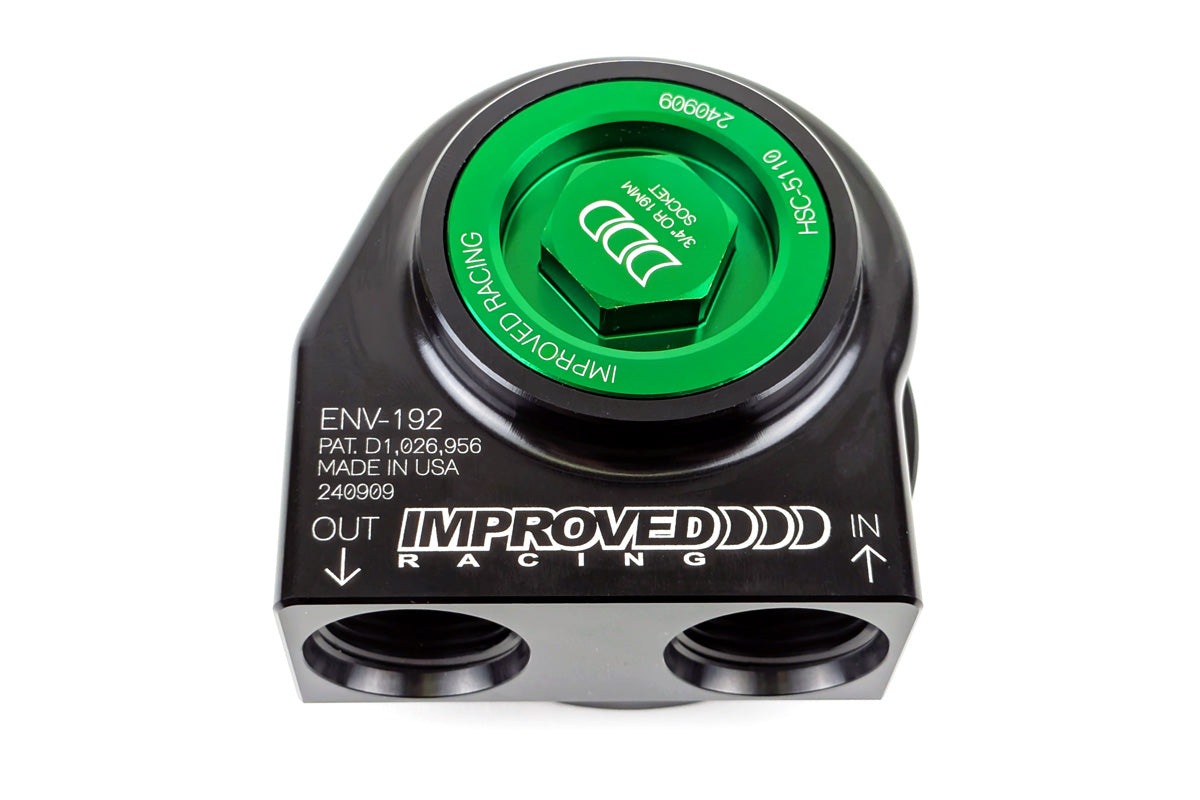

Low Profile Remote Oil Filter Relocation Adapter (Gen 2)

Improved Racing's low profile remote oil filter takeoff is less than 1.8 inches thick for maximum clearance in tight spaces. The adapter also swivels, allowing the ports to be oriented in any direction.

The internals are optimized to minimize pressure drop at high flow rates. Passages were made as large as possible and undercuts were used to maximize flow area. If you need to relocate your oil filter, this is one of the best options out there!

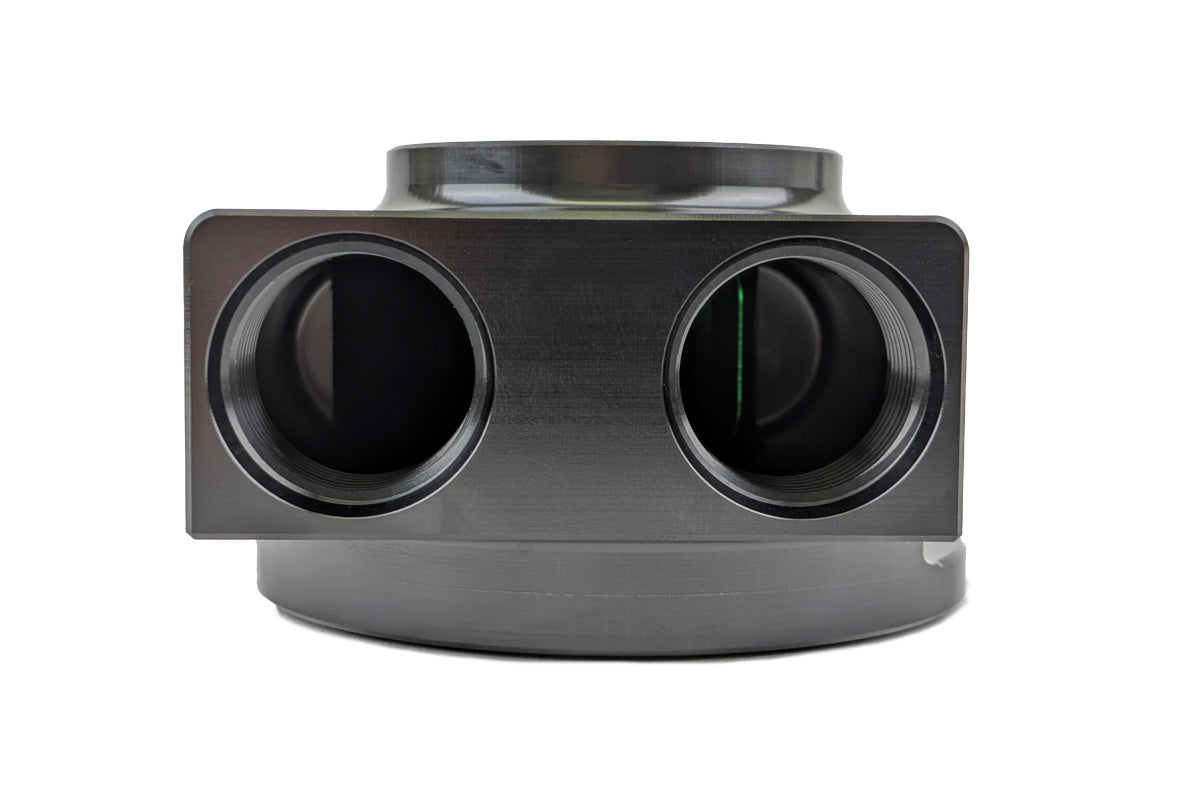

The oil line ports are -10AN O-ring boss ports and adapters are available for -8AN, -10AN, and -12AN lines.

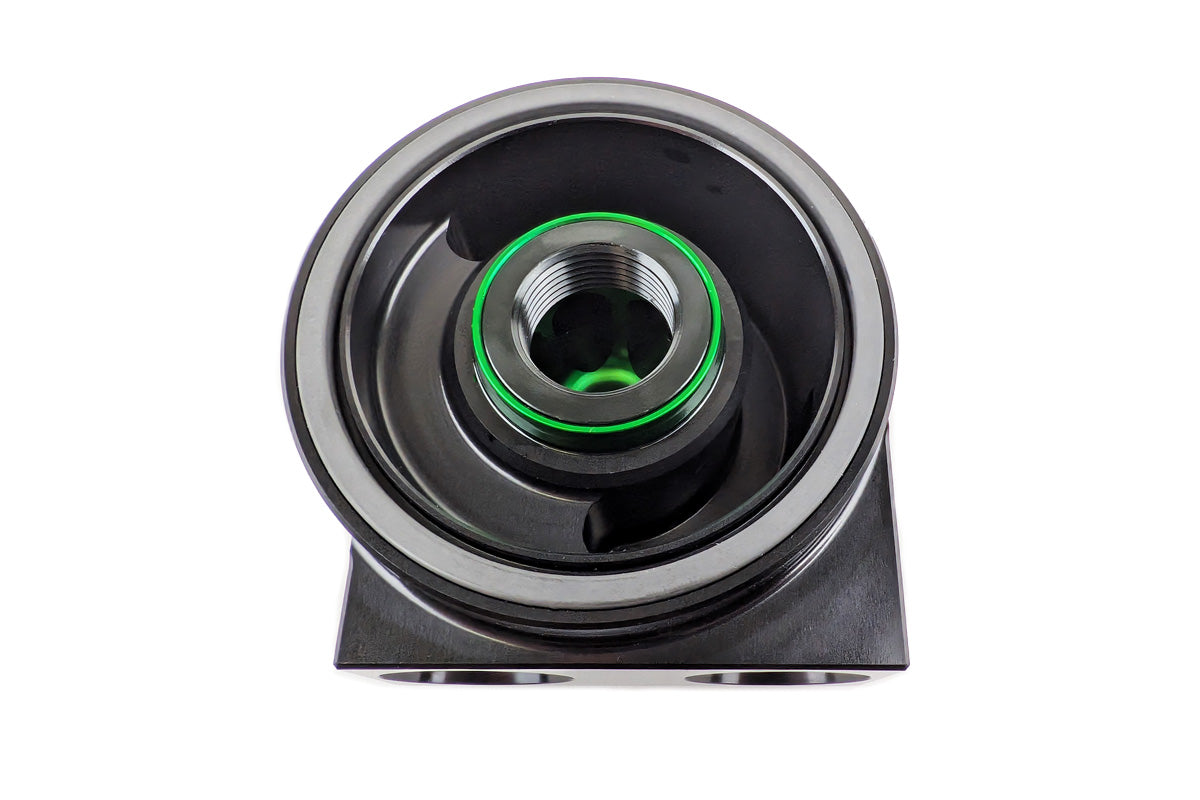

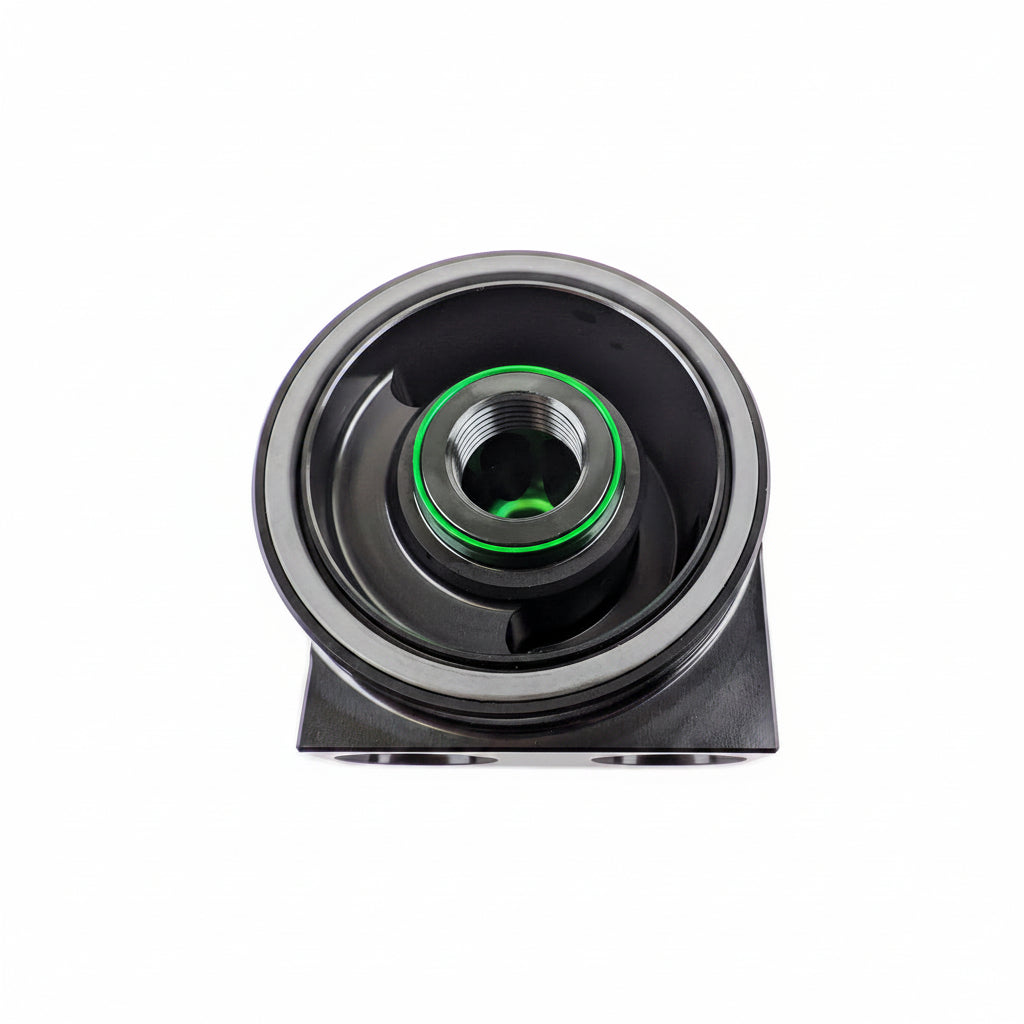

Double O-Ring Seals

This updated Gen 2 design also features an additional upper O-ring seal to guarantee that 100% of oil flow goes through the oil filter. The new axial O-ring seal allows the screw to be secured with less torque, which in turn has allowed the cavities in the screw to be enlarged for better flow. The entire adapter is now also even lower profile at less than 1.8 inches thick.

Features and Benefits

• Replaces the factory oil filter, allowing for a remote oil filter setup and the addition of an oil cooler.
• -10AN (JIC/SAE) O-ring boss ports for oil lines.
• Low profile, patented (US Patent # D1026956) swiveling design fits in tight spaces.
• Available for 3/4"-16, 13/16"-16, M20x1.00 (for motorcycle applications), M20x1.50, and M22x1.50 filter threads.
• O-ring seal inner diameter: 2.48".
• O-ring seal outer diameter: 2.76".
• CNC-machined 6061-T6 billet aluminum construction with MIL-A-8625 Type II black anodized finish.
• All FKM (Viton) O-ring seals for maximum temperature range, fluid compatibility, longevity and reliability.
• Lifetime Warranty.
• Made in the USA.

Optional Adapter Fittings Available in -8AN, -10AN, or -12AN

Includes

• 1x Low profile oil filter take off.
• 1x Filter screw.
• Viton (FKM) seals.

Dimensions
