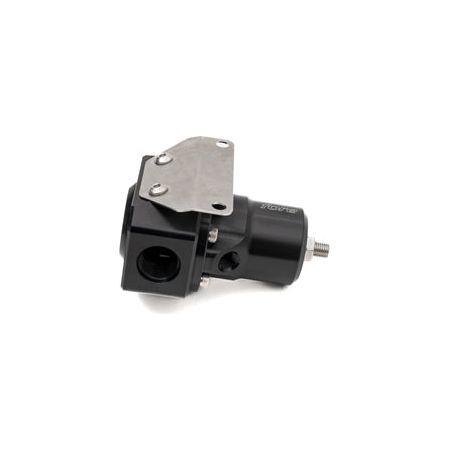

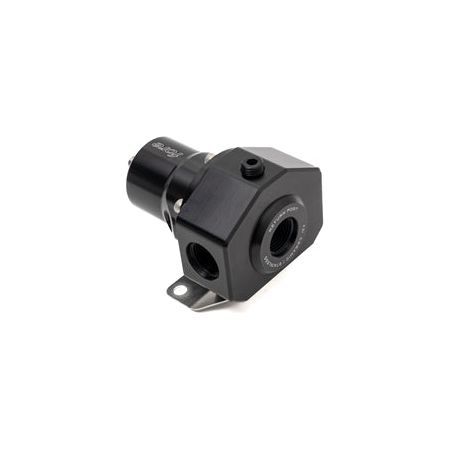

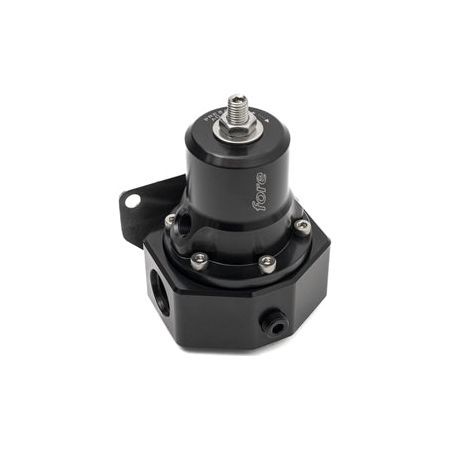

FORE F2i Fuel Regulator (Customizable)

FITMENT:

• Universal, any electronic fuel injected engine with a return style fuel system with port or throttle body injection.
• May be used with direct injection vehicles to regulate fuel pressure to the inlet of the high pressure fuel pump.
• May be used for inline or deadhead regulation
• May be used in a series with another F1i, F2i, or F4i to supply multiple pressures and/or reference strategies with one feed line

SPECIFICATIONS AND FEATURES:

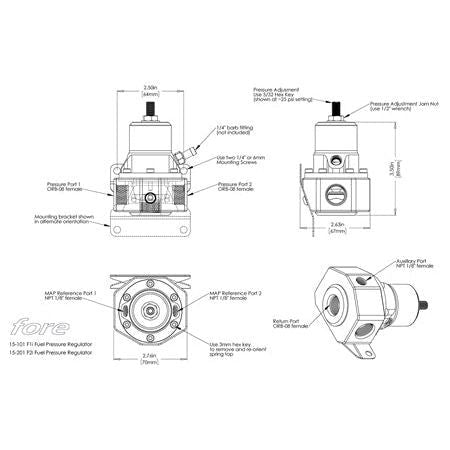

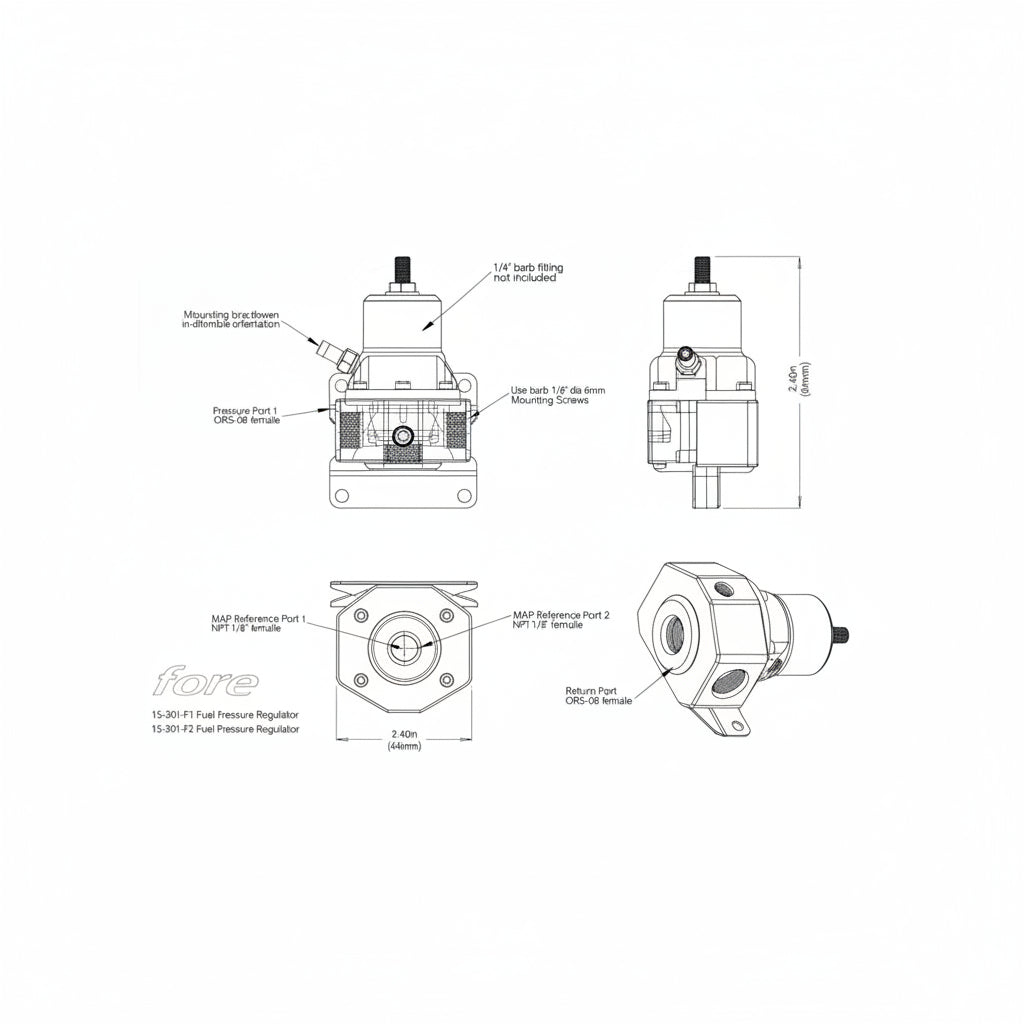

• Pressure Ports: two ORB-8 female (fitting not included)
• Return Port: ORB-8 female (fitting not included)
• Auxiliary Port: NPT 1/8" female (plug included, PTFE thread sealant required)
• MAP Reference Ports: two NPT 1/8" female (fittings not included)
• Base Pressure range: 25-70 psi
• Boost Limit: 250 psi
• FKM/Nomex composite diaphragm is compatible with gasoline, race gas, ethanol, methanol. MTBE will reduce diaphragm life.
• Not compatible with acetone or brake parts cleaner.
• Hydrodynamic internal cavity suitable for pass-through regulation
• Zero chatter design for maximum life expectancy and maintained accuracy
• Fine Pitch adjustment screw for precise setting of fuel pressure
• Reversible stainless steel mounting bracket included
