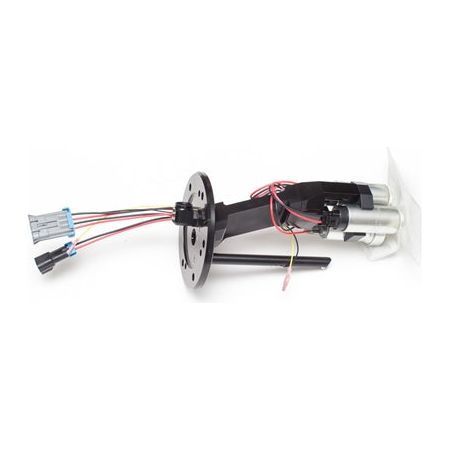

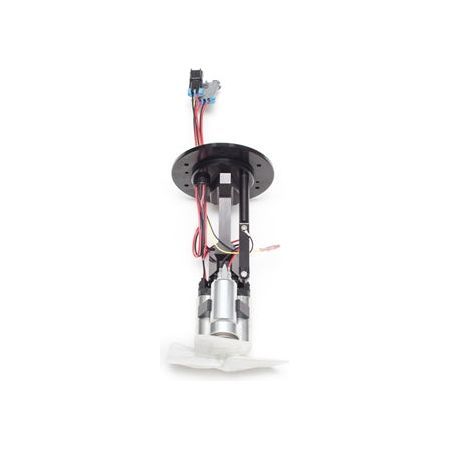

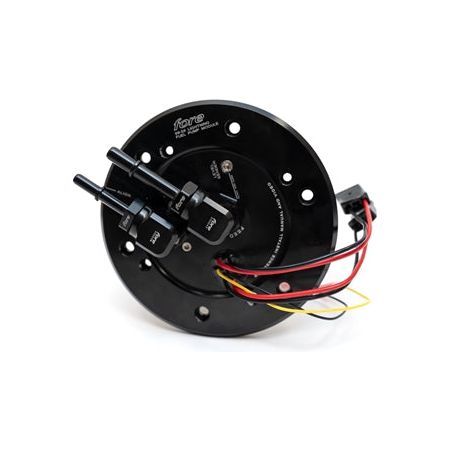

FORE (TRIPLE COMPACT) Fuel Hat - FORD 99-04 Lightning / 02-03 Harley
FORE (TRIPLE COMPACT) Fuel Hat - FORD 99-04 Lightning / 02-03 Harley
Regular price
$729.00 USD
Regular price
Sale price
$729.00 USD
Unit price
/
per
Couldn't load pickup availability
SPECIFICATIONS
- Feed port: -10 O-ring (7/8-14 threads)
- Return port: -8 O-ring (3/4-16 threads)
- Fuel compatibility: gasoline, race gas, ethanol, methanol (limited by fuel pump)
- Pump power/ground: 12 AWG
INCLUDES
- Fuel pump module with two pumps and pre-filters, as selected under "options". (not available without pumps)
- Contact Fore Innovations for latest installation manual
The module is constructed from CNC machined aluminum, anodized black. All bare hardware is stainless steel and brass, and all O-rings are Viton. The wires pass through the flange using our proven hermetic seal. The pump outlets are sealed using our Viton sealed cartridges using internal stainless snap rings. (no internal fuel hose or clamps)
Our FC3 will operate one pump full time to keep fuel heat and noise levels down, and the remaining pumps will activate under a trigger signal from your boost controller, aftermarket engine management system, or a pressure switch. Alternatively, you can run all pumps full time. Ideally, we suggest running a minimal full time pump configuration, then operate higher performance pumps in the secondary positions and only when necessary.
- Supports 1300+ rear wheel horsepower (call for more detail on your application)
- Requires substantial infrastructure upgrades, such as aftermarket fuel lines, upgraded filtration, and external fuel pressure regulator (see our complete systems)
- Retains OE level sender
- E85 and race fuel compatible (see Fuel Pump Selection for fuel compatibility)
- O-ring pump seals eliminate in-tank fuel hose to completely eliminate failures
- Hermetic wire seal completely eliminates the possibility of fuel smells and leaks
- Three pairs of 12 gauge power wires ensure maximum pump performance
- 1300+ rear wheel horsepower capable
- Accepts two 39mm frame pumps, plus one 39/50mm frame pump
