Innovate Motorsports

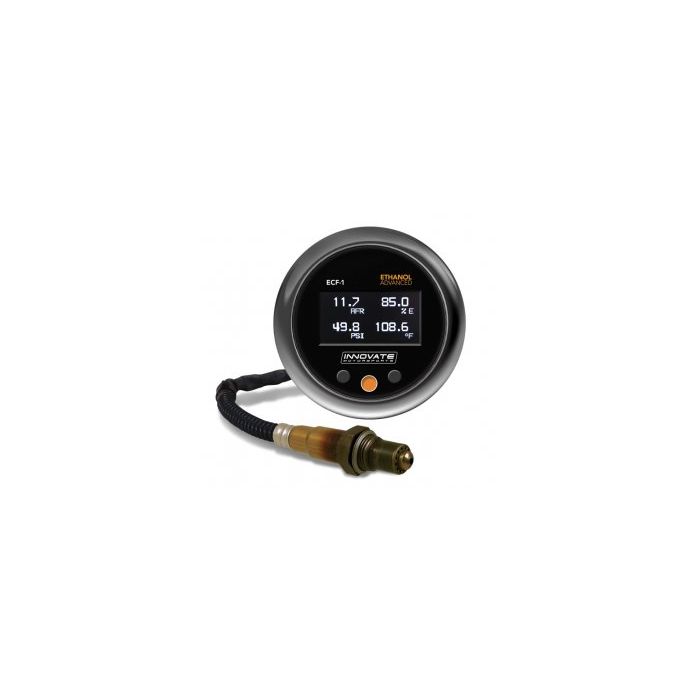

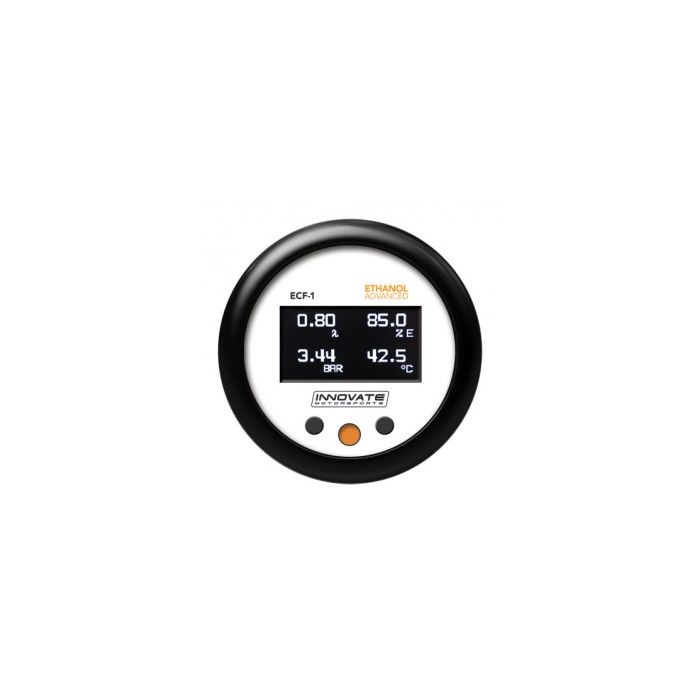

ECF-1: Ethanol Content Multi Gauge

ECF-1: Ethanol Content Multi Gauge

$486.99 USD
$486.99 USD
Sale Sold out
Shipping calculated at checkout.

ECF-1: Ethanol Content %, FUEL Pressure & Temp, & Wideband Air/Fuel Ratio Gauge, Complete

P/N
39030
Key Features
  • 0-145 PSI[10BAR] Fuel Pressure Sensor
  • 100 pct. Digital Wideband Air/Fuel Ratio Technology
  • 4-Configurable Analog Outputs
  • 52mm [2-1/16 in.] Dia. Gauge w/Interchangeable Faceplate/Bezel
  • Bosch™ LSU 4.9 Wideband O2 sensor
  • Four-In-One Ethanol Content; Fuel Temp; Fuel Press.; Wideband AFR
  • No PC Required For Configuration
  • OLED User Configurable Display; On Screen Error Reporting
  • Patented DirectDigital™ Wideband Sensor Control
  • Warning Indicator LED For Low Fuel Pressure[User Programmable]
Range

0 - 145 PSI (10 BAR) / 0 - 100% / -40 - 257 °F (-40 - 125°C) / 7.4:1 - 22.4:1 AFR (0.5 - 1.5 LAMBDA)

Kit Includes
ECF-1 Gauge, Continental Ethanol Sensor, Fuel Pressure Sensor, Fuel Line Fitting (3/8" M to 3/8" F w/1/8" NPT Side Port, Silver & Black Bezels, White & Black Faceplates, LSU 4.9 O2 Sensor, 8 Ft. Sensor Cable, 1" Exhaust Bung, Program Cable, and Manual.

Installation and setup
Installation of the ECF-1: Ethanol Content %, FUEL Pressure/Temp, & Wideband Air/Fuel Ratio Gauge, Complete is relatively simple. Complete documentation is supplied, and the support pages, application notes and tuner resources can also speed you on your way to effective tuning. Innovate also has a great network of local dealers, tuners, race shops, and dyno shops that can assist you in choosing, installing and getting the most out of your Innovate products.
Download Manual
View full details
