Key Features
- 3-Configurable Analog Outputs
- 4 BAR MAP Sensor; Pressure Range: -29inHG to 43.5PSI; -1 to 3 BAR
- 52mm [2-1/16 in.] Dia. Gauge Body
- Boost Vision; Real-Time Calculated Approx. Of ECUs Boost Limit
- Bosch™ LSU 4.9 Wideband O2 sensor
- Four-In-One Ethanol Content; Fuel Temp; Boost Press.; Wideband AFR
- Interchangeable Bezels; Black and Silver Included
- Interchangeable Faceplates; Black and White Included

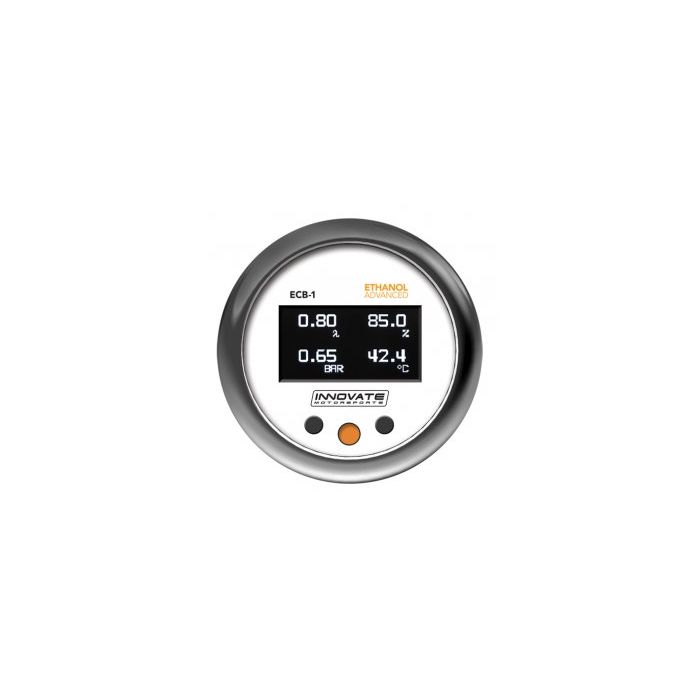

- OLED Configurable Display[One; Two; or Four Channel Viewing Mode]
- Patented DirectDigital™ Wideband Sensor Control
Range
29 inHG - 43.5 PSI (-1 to 3 BAR) / 0 - 100% / -40 - 257 °F (-40 - 125°C) / 7.4:1 - 22.4:1 AFR (0.5 - 1.5 LAMBDA)
Kit Includes

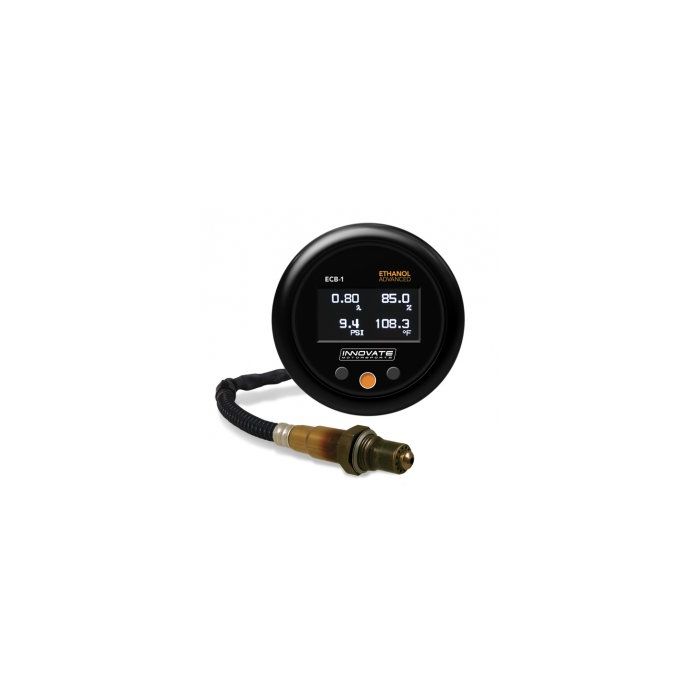

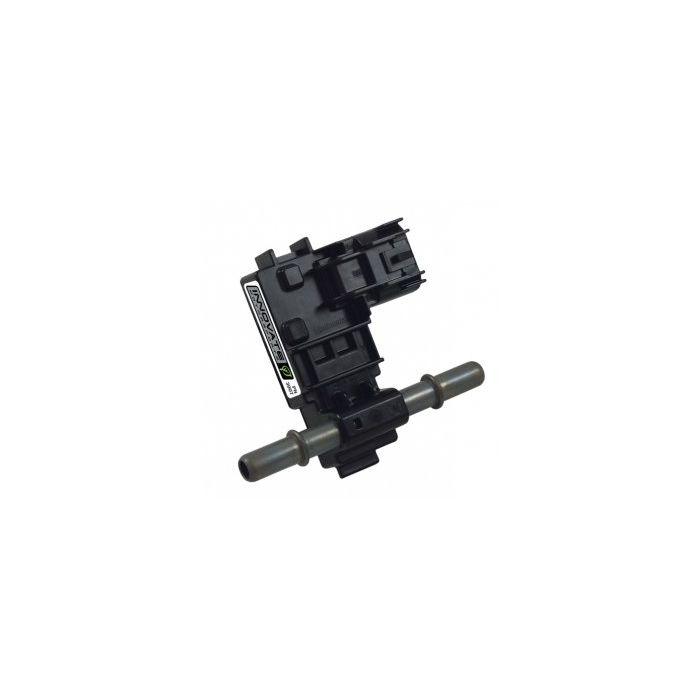

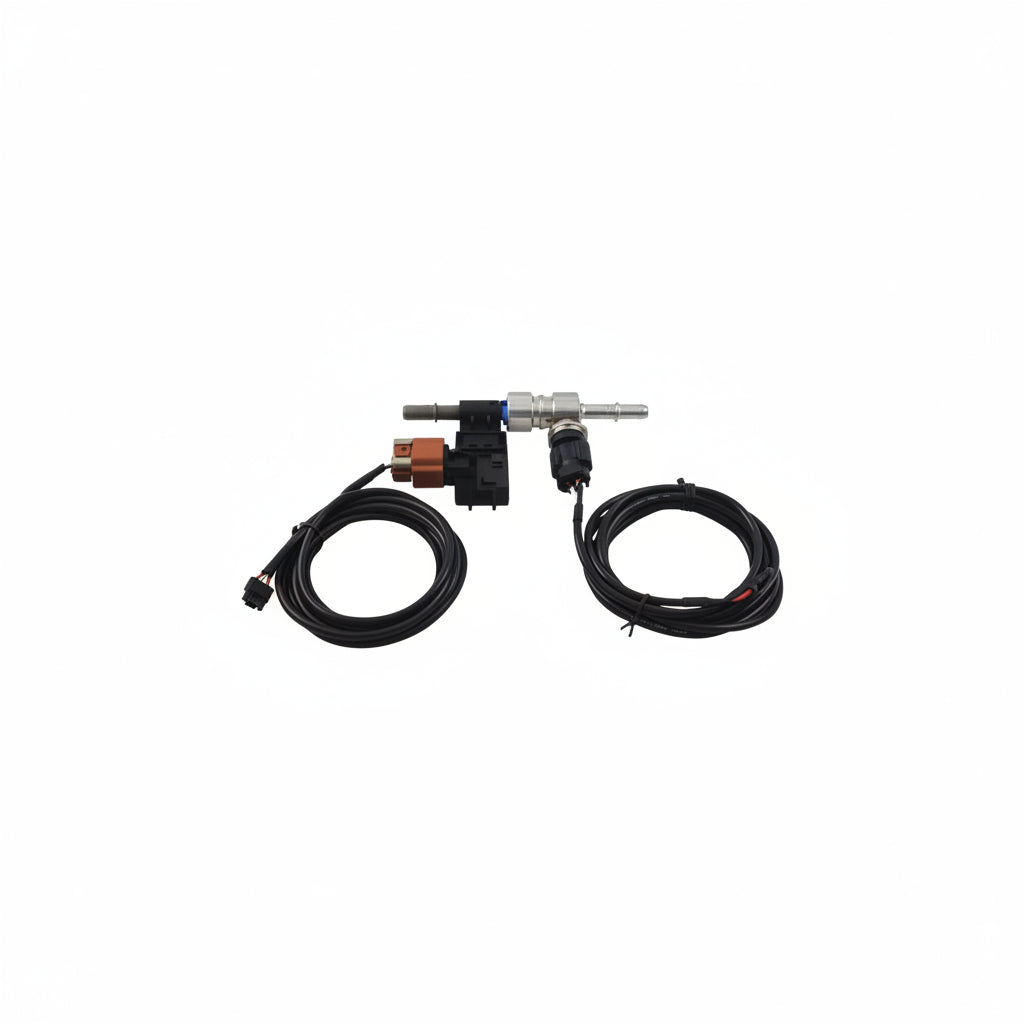

ECB-1 Gauge, Continental Ethanol Sensor, 4 BAR MAP Sensor, Silver & Black Bezels, White & Black Faceplates, LSU 4.9 O2 Sensor, 8 Ft. Sensor Cable, 1" Exhaust Bung, Program Cable, and Manual.
Installation and setup
Installation of the ECB-1: Ethanol Content %, Boost, & Wideband Air/Fuel Ratio Gauge, Complete is relatively simple. Complete documentation is supplied, and the support pages, application notes and tuner resources can also speed you on your way to effective tuning. Innovate also has a great network of local dealers, tuners, race shops, and dyno shops that can assist you in choosing, installing and getting the most out of your Innovate products.
