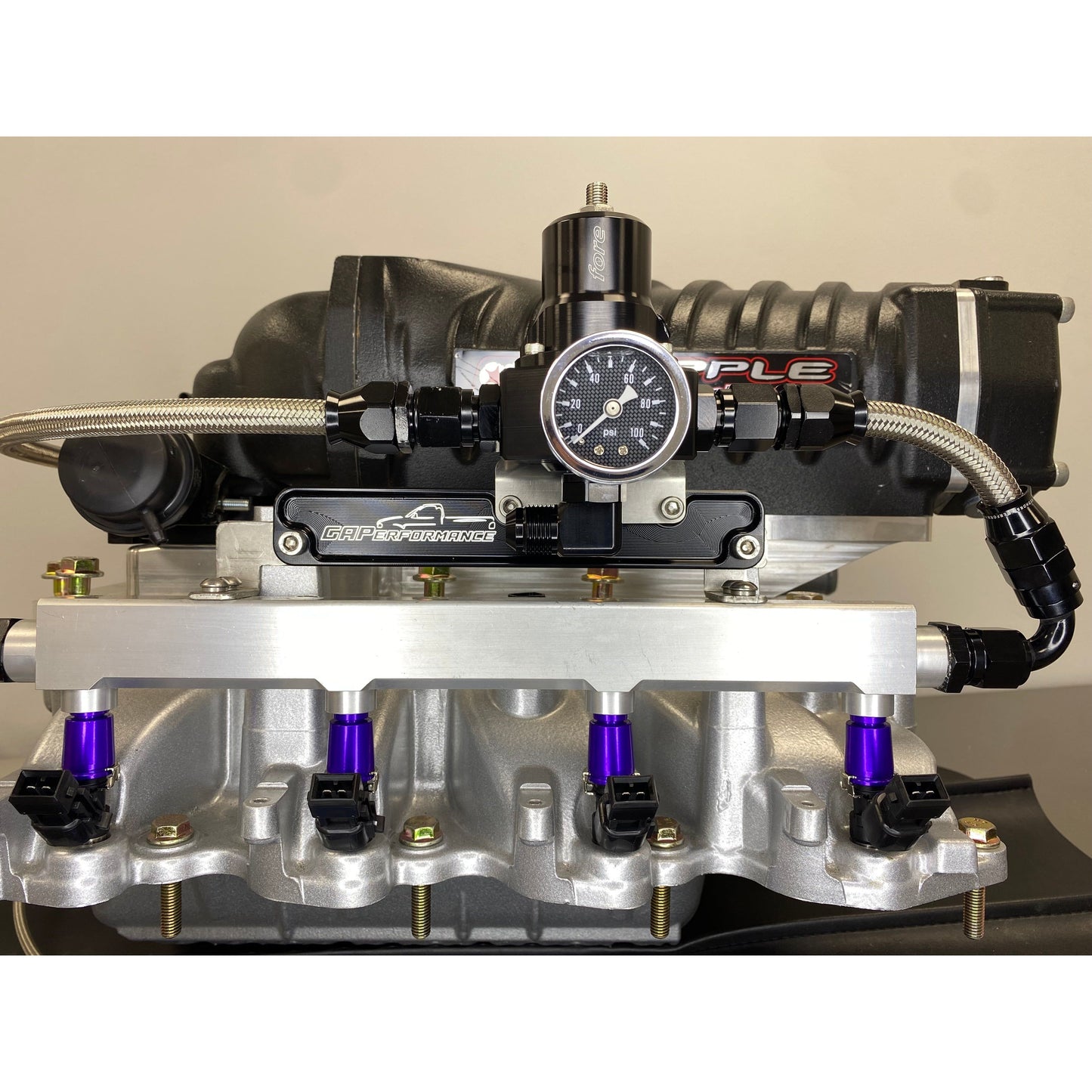

LFP Fuel Rails

DESCRIPTION

(FORD F-150 Lightning 99-04 / Harley 02-03)

Billet aluminum, clear anodized fuel rails with stainless mounting brackets and hardware. These fuel rails have been in production for over 12 years, and fit every known OE and aftermarket supercharger kit for the Lightning using factory length injectors for easy installation. Heavy duty stainless steel brackets are laser cut and bent to shape and will not flex under load from fuel pressure. Female 3/4-16 UNF threads (-8orb) at the rail ends accommodate commonly used rail fittings and hose ends. Each rail also has a 1/8 NPT port to accommodate a fuel pressure gauge or sensor.

Specifications:

• End port size: 3/4-16 UNF-2B (-8orb)
• Sensor Port Size: NPT 1/8" on both rails
